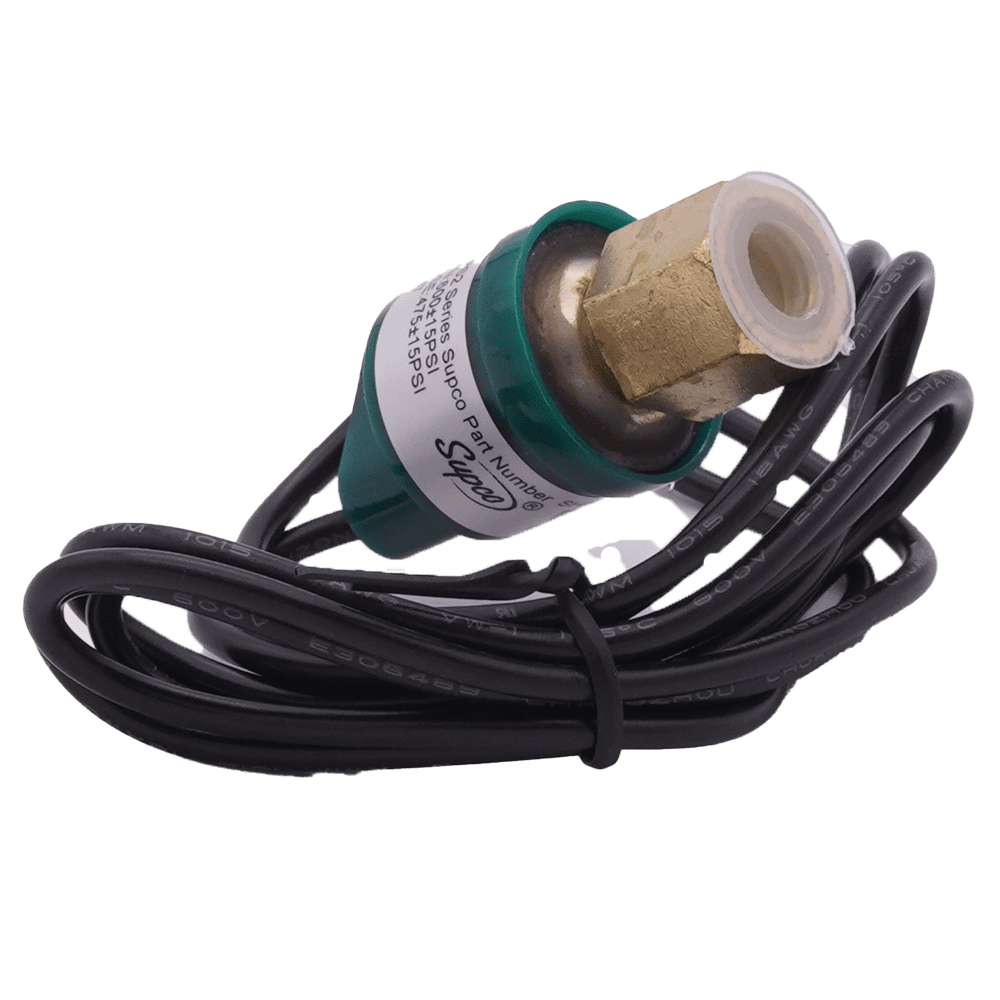

Supco SHP600475 High Pressure Control Switch

BRAND: Supco SKU: SHP600475

$11.64

MSRP: $13.39
You save 15%

Supco SHP600475 High Pressure Control Switch

Availability:

13 In Stock

Description

These switches are encapsulated nonadjustable, SPST, direct mount switches for use with HFC, HCFC, and CFC refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high switching. These switches can also be used as operating controls in applications such as low ambient condenser fan control.

Features:
  • 1/4in SAE 45-degree female flare fitting with valve core depressor
  • Excellent set point repeatability/stability
  • High pressure switch opens on pressure rise
  • Life at rated load: 100,000 cycles
  • Rated Voltage 24/120/240 VAC at 50/60 Hz
  • Small size and light weight for direct mounting
  • Snap acting stainless steel hermetically sealed sensor
  • Wire is 18 AWG, 18in long

Additional information

DC Voltage

Tolerance

Open PSI

Close PSI

Burst Pressure

2800 PSI

Maximum Safe Operating Pressure

Maximum Operating Temperature

UPC 687152206100
