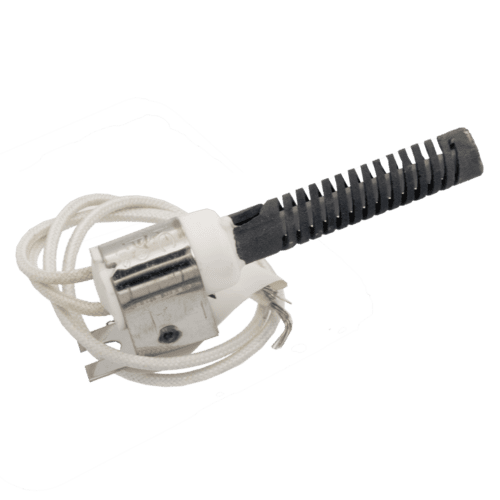

Supco SIG1100 Universal Round Silicon Carbide Igniter Kit

Name: Supco SIG1100 Universal Round Silicon Carbide Igniter Kit
Brand: Supco
SKU: SIG1100
Price: 29.00 USD
Availability: BackOrder

BRAND: Supco SKU: SIG1100

$29.00

MSRP: $33.35

You save 15%

Universal Round Silicon Carbide Igniter Kit

Availability:

Ships By May 6

Description

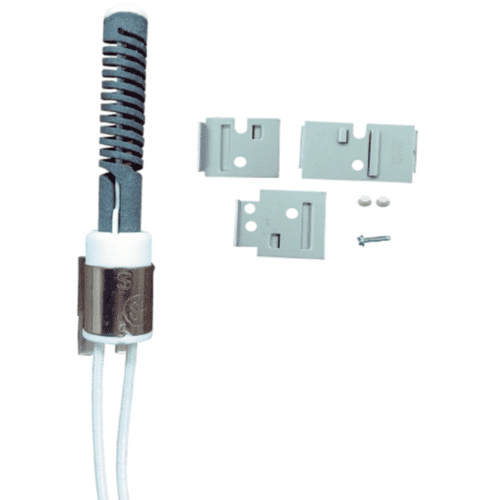

The Supco SIG1100 is a universal round silicon carbide igniter kit that includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters for over 150 different SKUs.

Features

Universal igniter kit is designed to replace hundreds of OEM part numbers
Universal replacement minimizes inventory
Superior gas lighting ability
Lower power consumption
18 gauge copper high temperature fiberglass insulated lead wires
Supco® round igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design
Faster time to temperature response
Stronger more durable design
More robust in transit
Higher resistance to oxidation
Longer usable life

Applications

Furnaces
Boilers
Water heaters
Unit heaters
Pool heaters

Specifications

Time to temperature (1800°F): < 17 seconds @ 120 VAC
Voltage: 120 VAC
Amperage: 4 amps @ 132 VAC maximum
Cold resistance: 40-100 Ohms @ 75°F +/- 10°F

Additional information

Amperage	4 Amps
Cold Resistance	40-100 Ohms @ 75?F +/- 10?F
Voltage	120V
UPC	687152196210

Installation Manual

Product Overview

Cross Reference

Reviews

There are no reviews yet.

Be the first to review “Supco SIG1100 Universal Round Silicon Carbide Igniter Kit”

Compatible Products

Brand	Compatible SKUs
Hupp Industries	9050
Williamson	9050
Enerco	10399
DMO Industries	20834, 26789
Weil-McLain	29074, 511-330-139, 511-330-190, 511-330-193
H.B. Smith	50018
GSW P.V.	86483
John Woods	86483
Superior Fireplace	94851
Raypak	600915
Frigidaire	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Intertherm	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Miller	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Nordyne	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Nortek Global HVAC	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Philco	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Tappan	902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632-3540, 632-3811, RH622286893
Heil Quaker	1001344, 1009604
ICP Brands	1001344, 1009604, 1096048
Arcoaire	1096048
Mor-Flo	3200618
Integra	3260618, 6905032
Amana	10735002
Coleman	14740511, 14740512
Ducane	20015201
Roberts Gordon	90434300, 90436600, 41-1090, 41-409, 41-410
Giant PV	526000025, 526000125
York	025-27774-000, 025-29043-000, 025-29050-000, 025-30277-000, 025-31801-000, 025-32625-000, 025-32626-000, 025-32638-002, 373-05342-700, 373-09154-700, 473-12509-001
Norton	101M, 201D, 201K, 201L, 201M, 201P, 201W, 271D, 271M, 271N, 271P, 271RS, 271W
L.B. White	120-07549
Detroit Radiant	201D
Metzger	201N, 201W
Dornback Furnace	271W
Lennox	33J3701
Trane	3400339P01, B12996P01, B138196P01, B144676P01, B144676P02, B340039P01, IGN21, IGN23, IGN26, IGN28, IGN30, IGN34
Armstrong Air	38322B001
Robertshaw	41-238, 41-242, 41-402, 41-403, 41-404, 41-405, 41-407, 41-408
Rheem	62-22441-01, 62-22668-93, 62-22868-82
RUUD Brands	62-22441-01, 62-22668-93, 62-22868-82
Wayne Home Equipment	62821-001, 62821-002
Majestic	75-92-104, 75-92-105
White-Rodgers	767A-301, 767A-303, 767A-306, 767A-310, 767A-311, 767A-350, 767A-353, 767A-354, 767A-357, 767A-361, 767A-364, 767A-365, 767A-366, 767A-370, 767A-371, 767A-372
Viessmann	9302-093, 9302-094
Goodman	B1172606, B1193939
Janitrol	B1172606, B1193939
Clair Brothers	C238, C238-1
Surface Igniter	CM067KX, FC007, FC024, FC035, FC046, FC050, FC051
Johnstone Supply	L37-699, L37-700, L37-812, L37-814, L37-815, L37-816, L40-765, L41-974
Grimsby Stove	ZCO-350
