Description

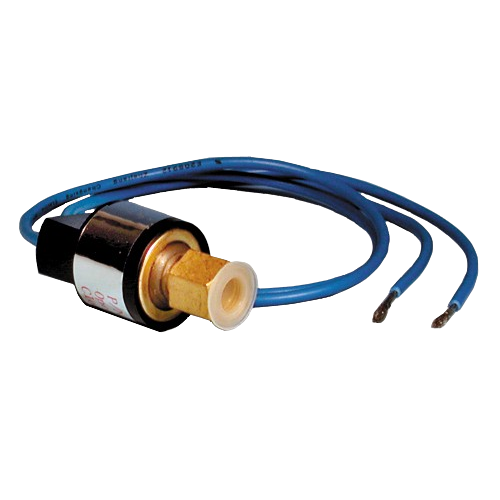

The SUPCO SLP2580 is a rugged, high-precision low-pressure SPST switch designed for refrigeration, air conditioning, and heat pump systems. Ideal for maintaining optimal system pressure control, it opens at 25 PSI during pressure drops and closes at 80 PSI, offering dependable safety and performance.
Features:
- ¼” SAE 45° female flare fitting with valve core depressor
- Automatic Reset
- Life at rated load: 100,000 cycles
- Low pressure switch opens on pressure fall
- Rated Voltage 24/120/240 VAC @ 50/60 Hz
- Small size and light weight for direct mounting
- Snap acting stainless steel hermetically sealed sensor
- Wire is 18 AWG, 18″ long
Specifications:
- Maximum FLA: 5.8 Amps @ 120VAC
- Maximum FLA: 2.9 Amps @ 240VAC
- Maximum LRA: 34.8 Amps @ 120VAC
- Maximum LRA: 17.4 Amps @ 240VAC
- Ambient Temperature: -22°F to 275°F (-30°C to 135°C)
- Fluid Temperature: -4°F to 302°F (-20°C to 150°C)
- Burst Pressure: 5000 PSI
- Close PSI: 80 PSI
- Open PSI: 25 PSI
- Tolerance: +/- 5 PSI
- DC Voltage: 6Vdc/12Vdc/36Vdc
- Agency Approvals: UL Recognized, CE
