Description

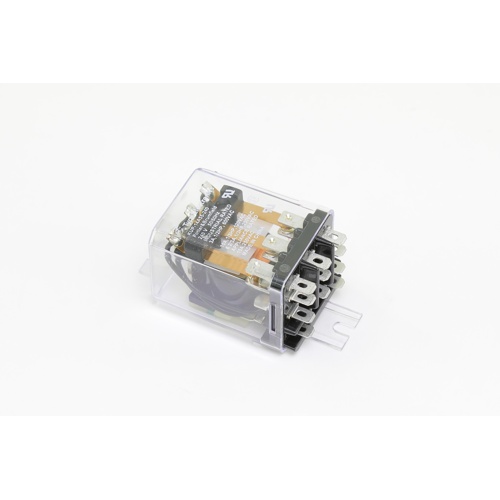

The TE Connectivity KUP-14A55-240 is a robust general purpose enclosed relay engineered for reliable switching performance in demanding HVAC and industrial control applications. Featuring a 3PDT (3-Pole Double-Throw) contact configuration, this relay operates at 240VAC coil voltage and is rated for up to 10 amps, making it well suited for a wide range of panel-mounted control circuits.
Designed for panel plug-in installation, the KUP-14A55-240 offers exceptional versatility with both quick-connect and solder terminal options, allowing flexible integration into new installations or retrofit applications. The enclosed case design protects internal components from dust, debris, and environmental contaminants, helping to extend service life in mechanical rooms, air handling units, and electrical control panels.
The bracket mount case provides secure, vibration-resistant mounting, ensuring consistent contact performance even in environments subject to mechanical stress. This relay is an ideal choice for HVAC technicians and controls engineers who require a dependable, industry-standard switching device.
Key Features
- 3PDT (3-Pole Double-Throw) contact configuration for versatile circuit switching
- 240VAC coil voltage for compatibility with standard commercial control circuits
- 10 Amp contact rating for general purpose load switching
- Panel plug-in design for easy installation and field replacement
- Quick-connect and solder terminal options for flexible wiring
- Enclosed case protects against dust and environmental contaminants
- Bracket mount case for secure, vibration-resistant installation
- Suitable for HVAC, building automation, and industrial control panel applications
Specifications
- Brand: TE Connectivity
- SKU / Part Number: KUP-14A55-240
- Relay Type: General Purpose, Enclosed
- Contact Form: 3PDT (3-Pole Double-Throw)
- Coil Voltage: 240VAC
- Contact Current Rating: 10 Amps
- Terminal Type: Quick-connect / Solder
- Mounting Style: Panel Plug-in with Bracket Mount Case
