Description

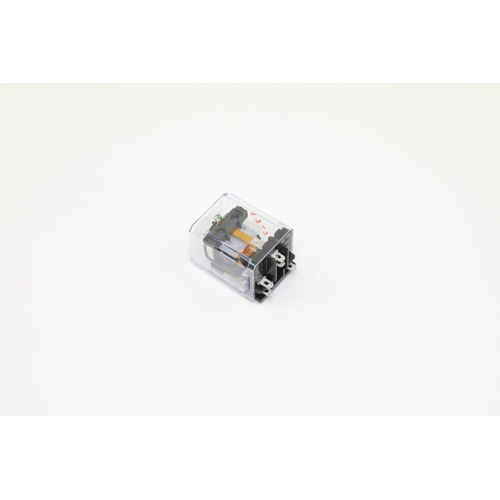

The TE Connectivity KUP-5A15-24 is a general purpose, panel plug-in enclosed relay engineered for reliable switching performance in HVAC control panels and electrical systems. With a 24Vac coil voltage and a 10-amp contact rating, this SPDT (Single Pole Double Throw) relay is well-suited for a wide range of heating, cooling, and ventilation control applications where dependable switching is critical.
Designed for socket mount installation, the KUP-5A15-24 features a rugged enclosed housing that protects internal components from dust and debris, extending service life in demanding environments. Quick-connect and solder terminals provide flexible wiring options, making installation straightforward for both OEM panel builders and field technicians.
Key Features
- SPDT (Single Pole Double Throw) contact configuration
- 24Vac coil voltage — ideal for standard HVAC low-voltage control circuits
- 10-amp contact rating for general purpose switching loads
- Panel plug-in design with socket mount case for easy installation and replacement
- Enclosed relay housing for protection against contaminants
- Quick-connect and solder terminal options for wiring flexibility
- Compact form factor suitable for control panels and electrical enclosures
Specifications
- Brand: TE Connectivity
- SKU / Part Number: KUP-5A15-24
- Contact Form: SPDT
- Coil Voltage: 24Vac
- Contact Current Rating: 10 Amps
- Relay Type: General Purpose
- Mounting Style: Panel Plug-In / Socket Mount
- Terminal Type: Quick-Connect / Solder
- Housing: Enclosed
Applications
- HVAC control panels and air handling unit controls
- Fan, pump, and blower switching circuits
- Building automation and zone control systems
- OEM equipment and replacement relay applications
- General electrical panel switching
