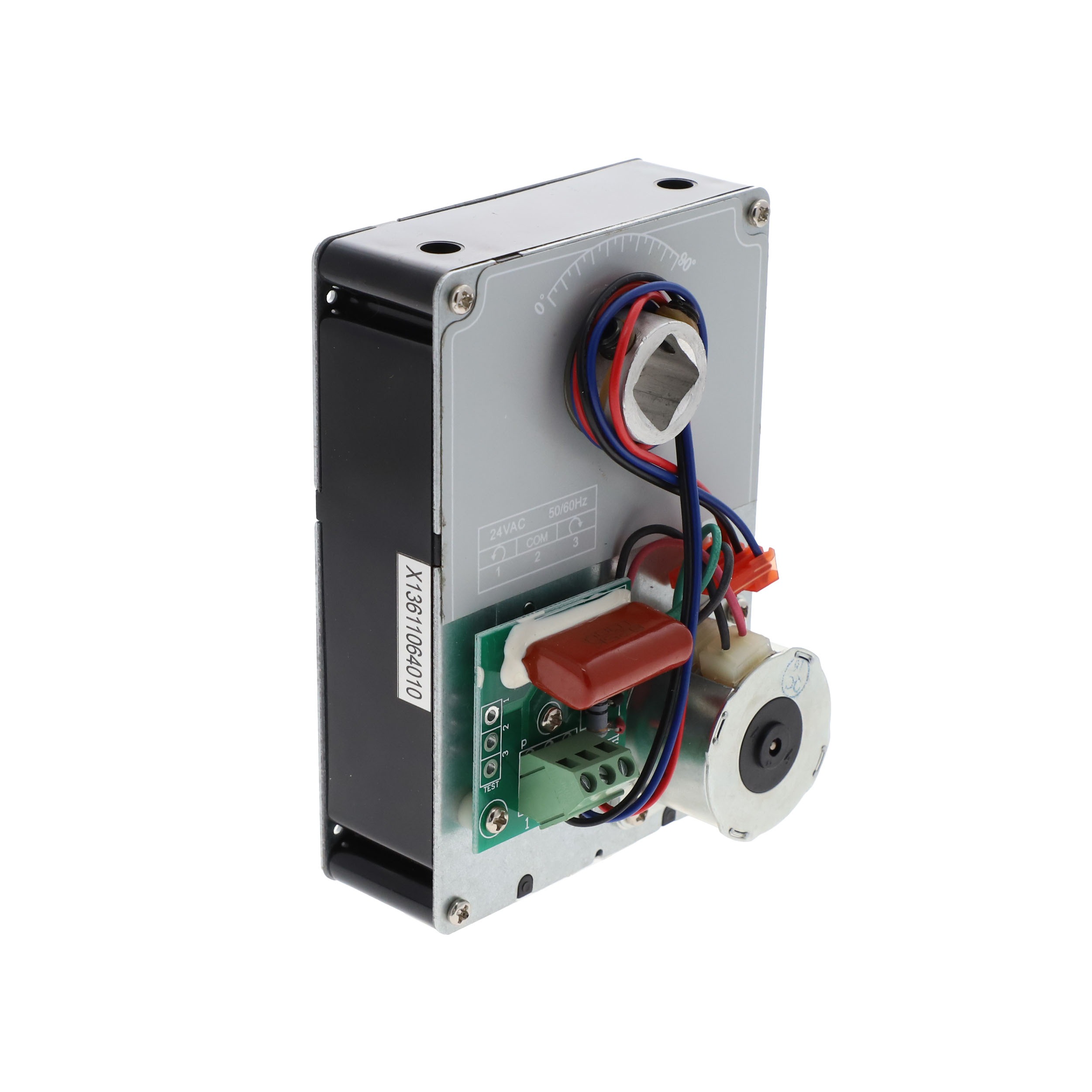

Trane ACT0433 24V 35 In-Lb 90° Non-Spring Return Actuator

Description

The Trane ACT0433 is a 24-volt, non-spring return (NSR) direct-coupled actuator engineered for dependable damper and valve control in commercial and light commercial HVAC applications. With 35 in-lb of torque and a 90° rotational stroke, this actuator provides the muscle and precision needed to drive dampers and ball valves in air handling and zoning systems.

Key Features

• 24V operating voltage for compatibility with standard HVAC control systems
• 35 in-lb torque output for positive damper and valve actuation
• 90° rotational stroke for quarter-turn damper and ball valve applications
• Non-spring return (NSR) design — damper holds last position on power loss
• Direct-coupled mounting for fast, tool-friendly installation
• Compact, low-profile housing fits tight mechanical spaces
• Genuine Trane OEM replacement part for assured compatibility

Application

The ACT0433 is ideal for use in VAV systems, air handling units, and zone damper applications where a non-spring return actuator is specified. Its direct-coupled design eliminates the need for crank arms or linkages, simplifying installation and reducing maintenance points.

Specifications

• Brand: Trane
• Part Number: ACT0433
• Supply Voltage: 24V
• Torque: 35 In-Lb
• Rotation: 90°
• Actuator Type: Non-Spring Return (NSR)
• Mounting: Direct-coupled
