Description

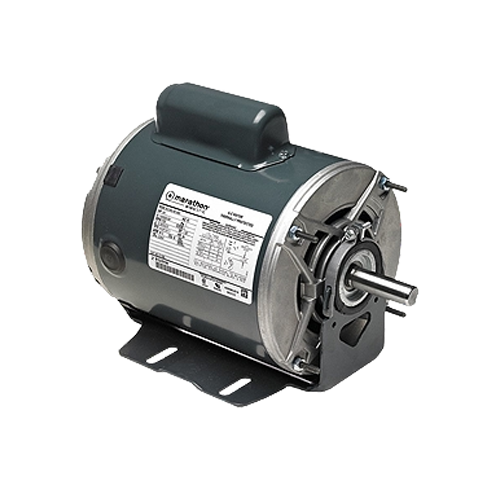

The Trane MOT5365 motor is a genuine OEM blower motor engineered for dependable performance in residential and light commercial HVAC equipment. This robust motor delivers consistent air movement and reliable operation, making it a solid choice for replacing worn or failed blower motors in air handlers and furnaces.
Key Features
- Horsepower: 1/2 HP — provides reliable torque suitable for blower and fan applications in HVAC systems.
- Voltage: 115/208 230 V AC — flexible voltage support for a range of installation environments.
- Speed: 1725 RPM — balanced rotational speed for effective airflow.
- Phase: Single phase design compatible with standard residential power.
- Frequency: 60 Hz for North American electrical systems.
- Frame Size: 56 frame with horizontal/resilient mount options.
- Enclosure: Open Drip Proof construction helps resist moisture in typical HVAC environments.
- Bearing Type: Ball bearings for smoother, quieter operation.
- Rotation: Counter clockwise (CCW) for standard airflow direction.
- Load Current: Approximately 8 amps under rated conditions.
- Shaft Details: Standard shaft diameter around 0.63″ with ~1.875″ shaft length.
- Thermal Protection: Built in thermal protector guards against overheating.
- Weight: Approximately 20.7 lbs.
