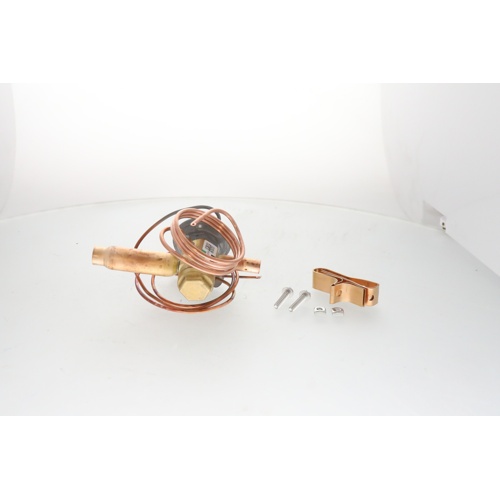

Trane VAL8683 Thermostatic Expansion Valve Overview
Engineered to Trane’s exacting standards, the VAL8683 is a thermostatic expansion valve (TXV) designed for R-22 refrigerant systems rated at 3 tons of cooling capacity. With 3/8″ inlet and 1/2″ outlet connections, this valve delivers precise refrigerant metering to maintain optimal evaporator superheat, protecting your compressor and maximizing system efficiency.
Key Features
- OEM Trane replacement thermostatic expansion valve
- Designed for R-22 refrigerant systems
- 3-ton (36,000 BTU/hr) rated capacity
- 3/8″ inlet x 1/2″ outlet connection sizes
- Precise superheat control for optimal evaporator performance
- Helps protect the compressor from liquid slugging
- Direct OEM replacement for compatible Trane equipment
Application
The VAL8683 is a direct OEM replacement part intended for use in Trane residential and light commercial air conditioning and heat pump systems that utilize R-22 refrigerant. Proper TXV function is critical to maintaining system efficiency, preventing compressor damage, and ensuring consistent cooling performance across varying load conditions.
Installation Notes
- Always recover refrigerant before replacing the TXV
- Verify system refrigerant type is R-22 before installation
- Confirm equipment tonnage matches the 3-ton valve rating
- Check inlet and outlet connection sizes (3/8″ x 1/2″) against existing piping
- Follow all applicable local codes and manufacturer guidelines
