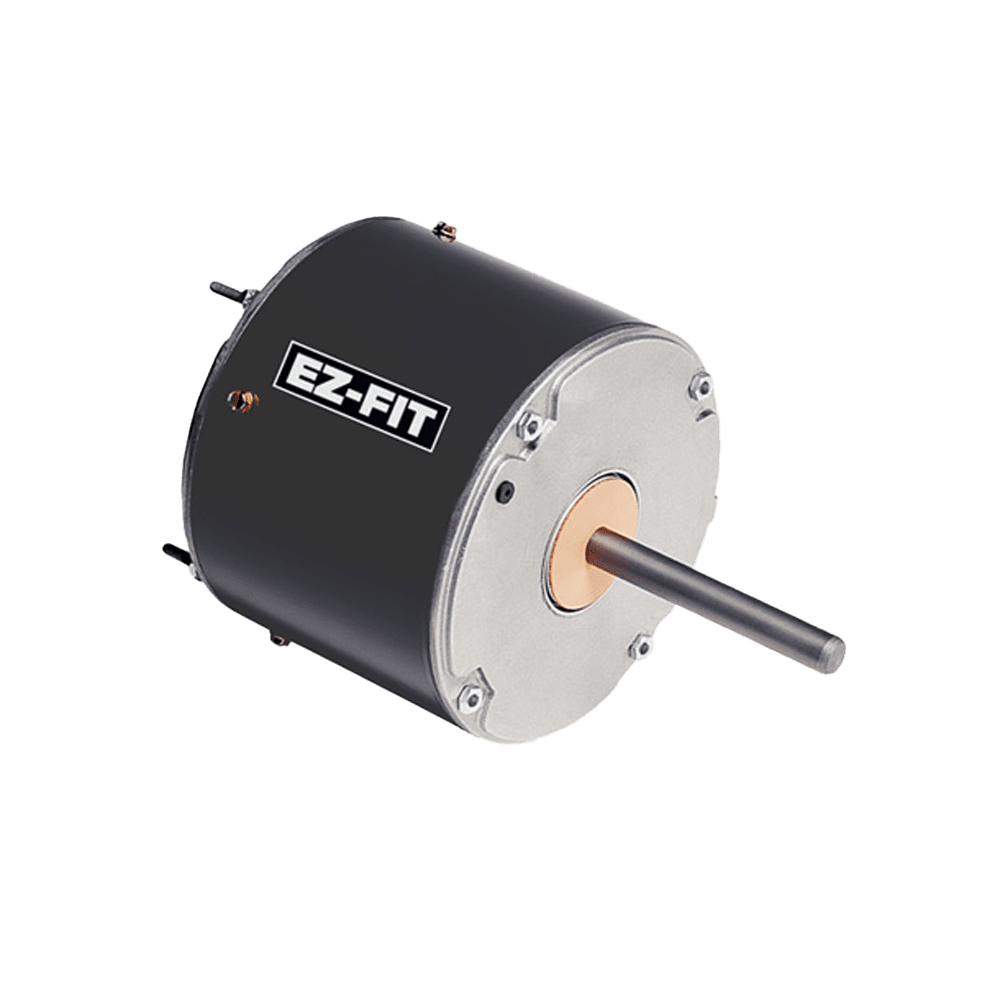

US Motors 1875 1/3-1/5HP 825RPM 208-230V EZ-FIT Condenser Fan, Enclosed, Air Over

BRAND: US Motors SKU: 1875

$163.51

MSRP: $188.04
You save 15%

US Motors 1875 1/3-1/5HP 825RPM 208-230V EZ-FIT Condenser Fan, Enclosed, Air Over

Free Shipping
Ships Tomorrow
Availability:

2 In Stock

Description

US Motors 1875 1/3-1/5HP 825RPM 208-230V EZ-FIT Condenser Fan, Enclosed, Air Over

Specs:
  • HORSEPOWER: .333
  • HORSEPOWER 2: 0.2
  • POLES: 8
  • NUMBER SPEEDS: 1
  • RPM: 825
  • HERTZ: 60
  • VOLTS PRIMARY: 208-230 V
  • VOLTS : 208
  • VOLTS 2: 230
  • FRME : 48
  • SHAFT CODE: Y
  • STATOR DIAMETER: 5.5
  • STACK: 2
  • MOUNTING: STUD
  • MOTOR TYPE: FHP
  • OPPOSITE END BEARING: SELF-ALIGN
  • SHAFT END BEARING: SELF-ALIGN
  • AMBIENT: 60
  • ROTATION: CCW LEAD END REV
  • SERVICE FACTOR: 1
  • RUNCAPMFD: 7.5
  • RUNCAPVOLTS: 440
  • THERMAL PROTECTION: AUTOMATIC RESET
  • BREAKDOWN TORQUE: 47.64
  • BREAKDOWN TORQUE UOM: OZFT
  • LOCKED ROTOR TORQUE: 7.233
  • LOCKED ROTOR TORQUE UOM: OZFT
  • INSULATION CLASS: B
  • LOCKED ROTOR AMPS: 4.15
  • FULL LOAD AMPS PRIMARY: 2.4-1.4
  • SERVICE FACTOR AMPS PRIMARY: 2.4-1.4
