Description

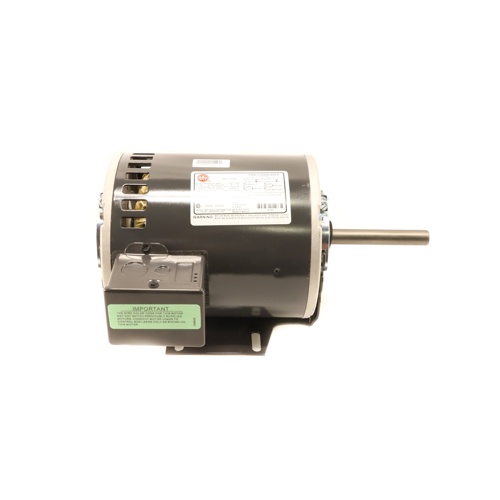

The US Motors 2193 is a heavy-duty condenser fan motor engineered for reliable, long-service performance in commercial and residential HVAC condensing units. Built to exacting industry standards, this Permanent Split Capacitor (PSC) motor delivers consistent airflow and efficient operation across a wide range of outdoor condensing applications.
Motor Overview
Designed as a direct-fit replacement or OEM-spec condenser motor, the US Motors 2193 combines a robust 56Y NEMA frame with an Open Drip Proof (ODP) enclosure, making it well-suited for outdoor condenser fan duty where moisture ingress protection and airflow cooling are required. The resilient base mount provides vibration dampening and flexible installation options.
Electrical Specifications
- Horsepower: 3/4 HP
- Voltage: 208-230/460 VAC
- Phase: Single Phase
- Full Load Amps: 4.8 / 2.5 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 920 RPM
- NEMA Frame Size: 56Y
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Resilient Base Mount
- Shaft Diameter: 5/8″
- Rotation: Counterclockwise (CCW) — Lead End
Key Features & Benefits
- PSC motor design for energy-efficient, reliable starting and running performance
- Ball bearings provide long service life and reduced maintenance requirements
- 56Y NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket condensing units
- Dual-voltage capability (208-230/460V) adds installation flexibility across single-phase applications
- Open Drip Proof enclosure protects internal windings from dripping liquids in outdoor installations
- Resilient base mount reduces vibration transmission to the unit structure
- CCW rotation (lead end) pre-configured for standard condenser fan blade orientation
- 5/8″ shaft diameter accommodates a wide range of condenser fan blade hubs
Application
Ideal for use in air-cooled condensing units, rooftop package units, and split-system air conditioners requiring a low-speed, single-phase condenser fan motor. The 920 RPM operating speed is optimized for quiet, efficient condenser coil airflow in both replacement and new-installation scenarios.
