Description

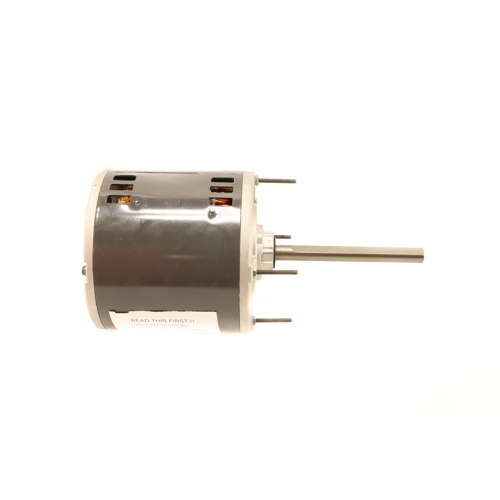

The US Motors 3568 is a heavy-duty permanent split capacitor (PSC) condenser fan motor engineered for reliable performance in residential and light commercial HVAC condensing units. Built to withstand the demands of outdoor condenser applications, this motor delivers consistent airflow and efficient operation season after season.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Horsepower: 1/2 HP
- Amperage: 3.6 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 825 RPM
- NEMA Frame Size: 56Z
- Shaft Diameter: 5/8″
- Rotation: Reversible
- Bearing Type: Ball Bearing
- Enclosure: Open Drip Proof (ODP)
- Mounting: Band or Stud Mount
Key Features & Benefits
- Permanent split capacitor design for smooth, energy-efficient starting and running
- Ball bearing construction for extended service life and reduced maintenance
- Reversible rotation provides installation flexibility for a wide range of condenser applications
- Open drip proof enclosure protects internal components from dripping liquids in standard outdoor installations
- Dual mounting options (band or stud) simplify replacement and retrofit installations
- 56Z NEMA frame ensures broad cross-compatibility with OEM condenser fan motor applications
- 5/8″ shaft diameter accommodates standard condenser fan blade hubs
Application
The US Motors 3568 is ideal for use as a direct replacement condenser fan motor in residential and commercial air conditioning systems. Its 56Z NEMA frame, reversible rotation, and flexible mounting options make it a versatile choice for HVAC technicians performing motor replacements or system upgrades.
