Description

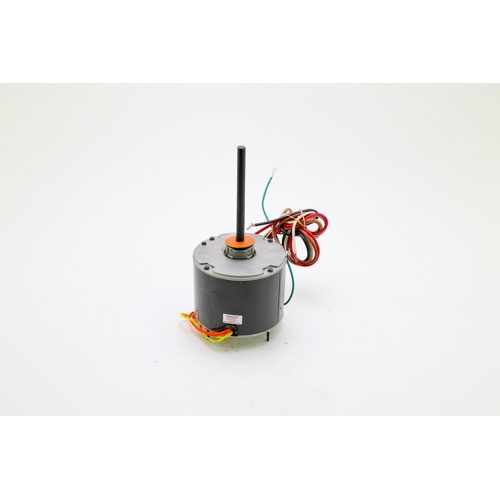

The US Motors 8673 is a heavy-duty Permanent Split Capacitor (PSC) condenser fan motor engineered for reliable, long-life performance in air conditioning and refrigeration condensing applications. Built to withstand the demanding outdoor environment of condenser sections, this motor features a Totally Enclosed Air Over (TEAO) enclosure that protects internal windings from dust, moisture, and debris while relying on the airstream of the condenser fan for cooling.
Key Features
- Permanent Split Capacitor (PSC) motor design for efficient, smooth single-phase operation
- Totally Enclosed Air Over (TEAO) enclosure for superior protection against contaminants
- 48Y NEMA frame size for broad OEM and aftermarket compatibility
- SAB (Sleeve and Ball) bearing construction for quiet, dependable operation
- Stud mount configuration for secure, vibration-resistant installation
- Single-phase operation on 208–230 VAC power supply
Electrical Specifications
- Horsepower: 1/6 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 1.0 Amps (Full Load)
- Speed: 825 RPM
Mechanical Specifications
- NEMA Frame Size: 48Y
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Bearing Type: SAB (Sleeve and Ball)
- Mounting: Stud Mount
- Motor Type: Permanent Split Capacitor (PSC)
Applications
The US Motors 8673 is ideal as a direct replacement or OEM condenser fan motor for residential and light commercial air conditioning systems. Its 48Y NEMA frame and stud mount configuration make it a versatile fit across a wide range of condensing units. The TEAO enclosure and SAB bearing combination ensure dependable performance season after season in outdoor installations.
