Description

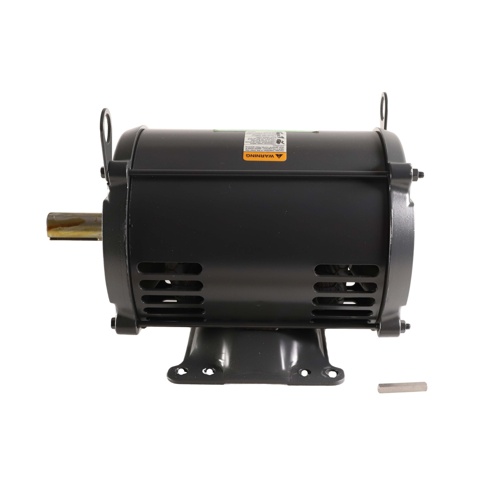

The US Motors D5P1D is a heavy-duty general purpose electric motor engineered for demanding HVAC and industrial applications. Delivering 5 horsepower at 3515 RPM, this three-phase motor is built to handle continuous-duty workloads with efficiency and reliability.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Full Load Amps: 6.2 Amps
- Speed: 3515 RPM (1 Speed)
- Horsepower: 5 HP
Mechanical Specifications
- NEMA Frame Size: 182T
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Key Features & Benefits
- Dual-voltage design (208-230/460V) provides installation flexibility across a wide range of electrical systems
- Open Drip Proof (ODP) enclosure allows for ventilated cooling, ideal for clean, indoor environments
- Ball bearing construction ensures smooth, low-friction operation and extended service life
- Reversible rotation allows for versatile application configurations
- Horizontal footed mount provides a stable, secure installation platform
- 182T NEMA frame ensures dimensional standardization and easy cross-referencing for replacement applications
- Three-phase design delivers consistent torque and energy-efficient operation
Typical Applications
- HVAC fans and blowers
- Pumps and compressors
- Conveyor and material handling equipment
- Industrial machinery and equipment drives
The US Motors D5P1D is a trusted solution for contractors and facility managers seeking a reliable, standards-compliant motor for general purpose use. Its robust construction and flexible voltage rating make it a go-to choice for a wide variety of commercial and light industrial installations.
