Description

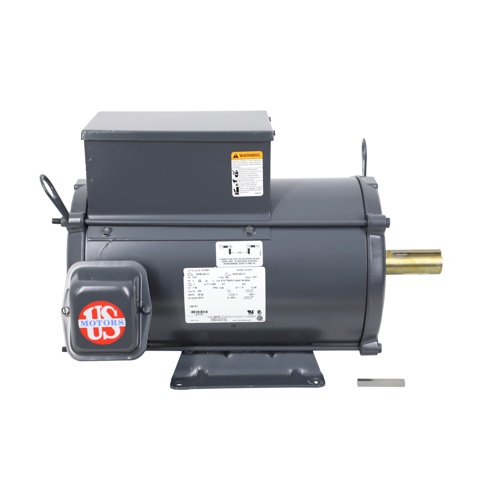

The US Motors D7C2K21 is a heavy-duty general purpose single-phase motor engineered for demanding HVAC, industrial, and commercial applications. Rated at 7½ horsepower and designed to operate on 230V AC single-phase power, this motor delivers reliable, consistent performance where three-phase power is unavailable.
Key Features
- 7½ HP output for high-torque, heavy-load applications
- 230V AC single-phase input voltage
- 1730 RPM operating speed for efficient power delivery
- 35.5-amp full-load current rating
- 215T NEMA frame size for standardized mounting compatibility
- Open Drip-Proof (ODP) enclosure protects against dripping liquids and falling debris in semi-protected environments
- Precision ball bearings for long service life and reduced maintenance
- Rigid mount base for secure, vibration-resistant installation
- Reversible rotation for flexible installation configurations
- Single-speed operation for straightforward control
Specifications
- Brand: US Motors
- SKU: D7C2K21
- Horsepower: 7½ HP
- Voltage: 230V AC
- Phase: Single Phase
- Speed: 1730 RPM
- Speeds: 1
- Full Load Amps: 35.5 A
- NEMA Frame: 215T
- Enclosure: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Rigid
- Rotation: Reversible
Applications
The D7C2K21 is well-suited for a wide range of HVAC and industrial applications including air handlers, fans, blowers, pumps, compressors, and conveyor systems. Its 215T NEMA frame ensures drop-in compatibility with standard motor mounts, simplifying replacement and installation. The ODP enclosure makes it ideal for indoor or sheltered outdoor use where exposure to dripping water or non-corrosive environments is a concern.
Why Choose US Motors?
US Motors, a Nidec brand, is a trusted name in electric motor manufacturing with decades of experience producing motors built for reliability and efficiency. The D7C2K21 upholds that tradition with robust construction, standardized dimensions, and reversible rotation to meet the demands of professional HVAC and mechanical contractors.
