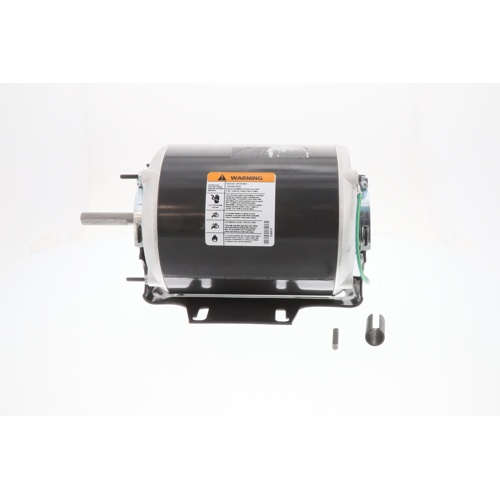

US Motors PD6004 Belt Drive Motor Overview
The US Motors PD6004 is a reliable, single-speed belt drive motor engineered for demanding HVAC and commercial air-handling applications. Built around a 48Z NEMA frame with a resilient base mount, this motor delivers consistent performance in blower and fan drive systems where dependability and longevity are essential.
Key Specifications
- Horsepower: 1/3 HP
- Voltage: 115-208/230 VAC
- Motor Type: Split Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 6.6 A (115V) / 3.1–3.3 A (208/230V)
- NEMA Frame Size: 48Z
- Enclosure: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Resilient Mount
- Rotation: Reversible
Features & Benefits
- Dual-voltage capability (115-208/230 VAC) for flexible installation across a wide range of electrical systems
- Split phase design provides reliable starting performance for belt drive loads
- Ball bearing construction ensures smooth, low-maintenance operation and extended service life
- Open drip-proof (ODP) enclosure protects internal components from dripping liquids in standard indoor environments
- Resilient mount base absorbs vibration, reducing noise and mechanical stress on the system
- Reversible rotation allows for versatile installation configurations
- 48Z NEMA frame ensures broad compatibility with standard motor mounts and drive assemblies
- 1725 RPM synchronous speed suits a wide variety of blower and fan belt drive applications
Typical Applications
- HVAC air handlers and blower assemblies
- Belt drive fan systems
- Commercial and light industrial ventilation equipment
- Replacement motor for OEM belt drive units requiring a 48Z NEMA frame
