Description

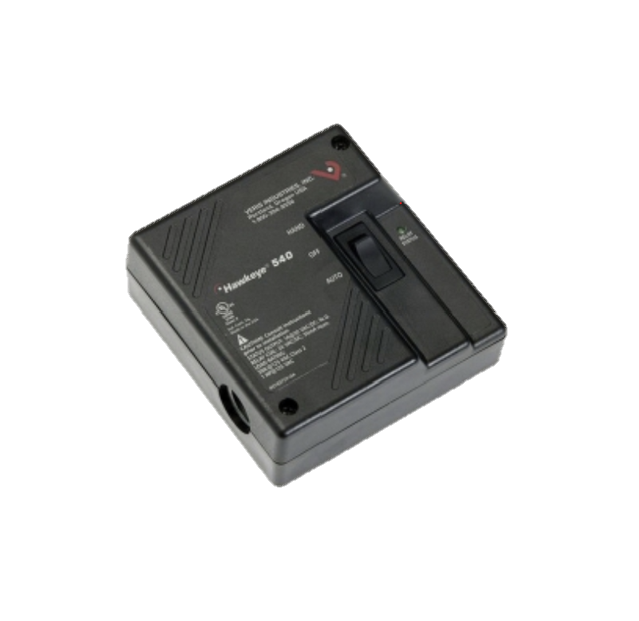

Discover the Veris H540—a reliable, compact solution for motor status detection, control, and troubleshooting in fractional horsepower applications. Built for HVAC, automation, and industrial systems, this device effortlessly combines switching, supervision, and manual override in a single remote enclosure.
Specifications:
- Application: Building Automation Systems
- Current Measurement Range: 0.25 – 15 A
- Current Sensor type: Current Transducer, AC, with Relay
- Electrical Wiring Size: 24 – 14 AWG (0.2 – 2.1 mm²)
- Hand-Off-Auto: Yes
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Mounting: 4 x 4 Box
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 122 °F (-15 – 50 °C)
- Output Specifications: N.O. 1 A @ 30 VAC/DC
- Outputs: Switch output | Relay
- Product Certification: UL
- Range: Motor Control Series
- Relay Coil Voltage: 24 VAC/DC
- Relay Construction: Mechanical
- Relay Contact Ratings: Resistive: 15 A @ 277 VAC | Motor: 1 H.P. @ 120 VAC
- Relay Poles/Throw: SPST
- Setpoint: Fixed
