Description

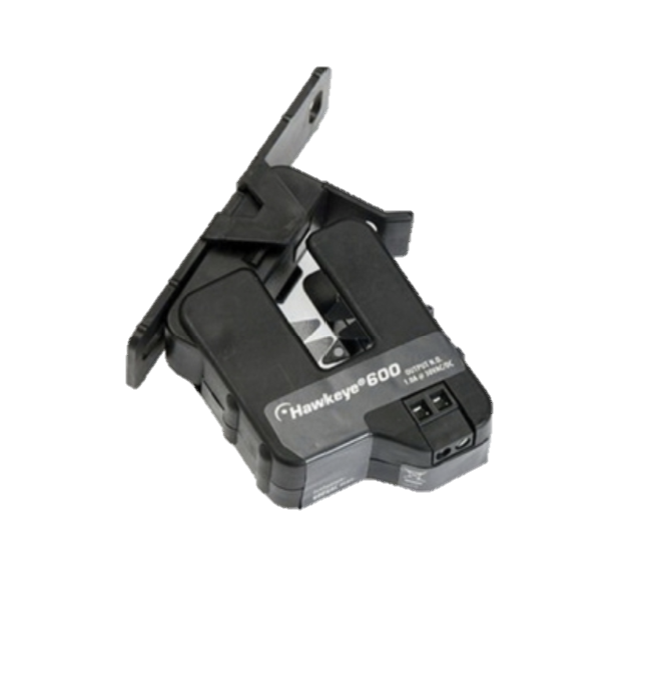

Built for building automation and HVAC applications, the Veris H600 offers a reliable, cost-effective solution for monitoring on/off status of small motors, fans, pumps, lighting, and other fixed electrical loads.
Specifications:
- Current Measurement Range: 0.15 – 200 A
- Current Sensor type: Current Switch, AC
- Electrical Wiring Size: 24 – 14 AWG (0.2 – 2.1 mm²)
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Monitored Wire Size: 0.5″ (12 mm)
- Mounting: Split Core
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 122 °F (-15 – 50 °C)
- Output Specifications: N.O. 1 A @ 30 VAC/DC
- Outputs: Switch output
- Product Certification: UL | CE
- Range: HX00 Series
- Relay Coil Voltage: None
- Relay Contact Ratings: None
- Relay Poles/Throw: None
- Setpoint: Fixed
