Description

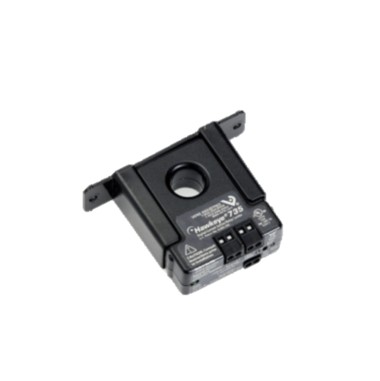

The Veris H735 is a high-performance, adjustable current switch designed to monitor AC current in HVAC systems, pumps, fans, and industrial equipment. Combining a solid-core current sensor with a mechanical SPST relay, it offers reliable status monitoring and control in a single, compact unit.
Specifications:
- Current Measurement Range: 1 – 135 A
- Electrical Wiring Size: 24 – 14 AWG (0.2 – 2.1 mm²)
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Monitored Wire Size: 0.7″ (18 mm)
- Mounting: Solid Core
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 140 °F (-15 – 60 °C)
- Output Specifications: N.O. 1 A @ 30 VAC/DC
- Outputs: Switch output | Relay
- Product Certification: UL
- Relay Coil Voltage: 24 VAC/DC
- Relay Construction: Mechanical
- Relay Contact Ratings: Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive: 3 A @ 250 VAC | Inductive: 3 A @ 30 VDC
- Relay Poles/Throw: SPST
- Setpoint: Adjustable
