Description

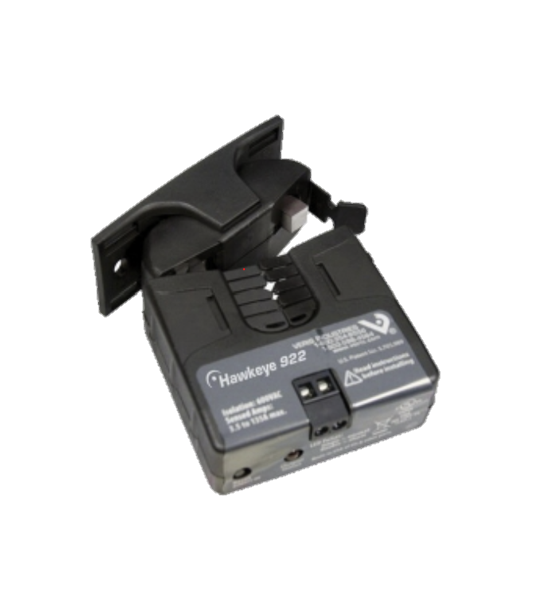

Upgrade your building automation system with the Veris H922030A, a high-performance split‑core current transducer designed for precise load monitoring and energy management in HVAC, motor control, and automation applications.
Specifications:
- Application: Building Automation Systems
- Current Measurement Accuracy: ±2% of F.S. above 3 A
- Current Measurement Range: 0 – 30 A
- Current Sensor type: Current Transducer, AC
- Electrical Wiring Size: 24 – 14 AWG (0.2 – 2.1 mm²)
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Monitored Wire Size: 0.8″ (21 mm)
- Mounting: Split Core
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 140 °F (-15 – 60 °C)
- Output Specifications: 0 – 5 VDC
- Outputs: Analog output
- Product Certification: UL | CE
