Description

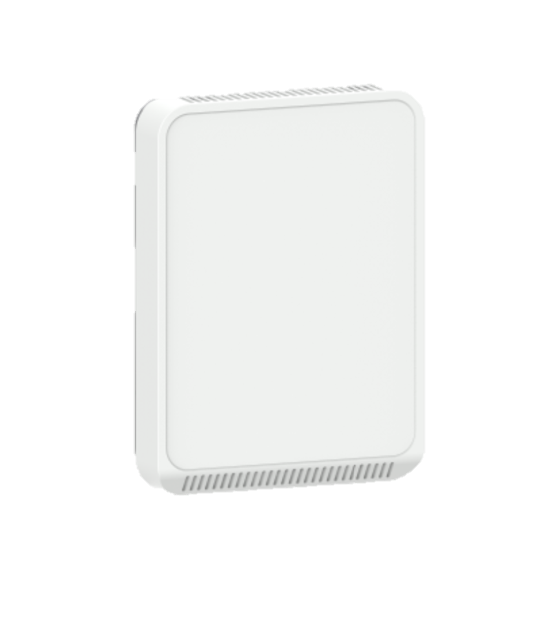

The Veris HW2XA2C Wall Humidity Sensor delivers precise and dependable humidity measurement for residential, commercial, and industrial HVAC applications. Designed for easy wall-mount installation, this sensor offers consistent performance to help maintain optimal indoor air quality and energy efficiency.
Specifications:
- Color: Matte White
- Electrical Wiring Size: Screw terminals, 18-24 AWG
- Enclosure Material: High impact ABS plastic
- Humidity Measurement Accuracy: ±2% from 10 to 80% RH @ 25°C (77 °F)
- Humidity Measurement Range: 0 to 100% RH
- Humidity Measurement Resolution: 0.1% RH
- Humidity Sensor Type: Thin-film capacitive, replaceable
- IP Protection: IP20
- Input Specifications: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
- Measurement Type: RH / Temperature
- Operating Humidity: 0 to 95% RH non-condensing
- Operating Temperature: 0 to 50 °C (32 to 122 °F)
- Output Specifications: Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
- Outputs: Analog
- Override: No
- Setpoint: No
- Standards EMC: EN61000 Series – industrial immunity
- Temperature Measurement Accuracy: ±0.3 °C
- Temperature Measurement Range: 0 to 50 °C (32 to 122 °F)
- Temperature Measurement Resolution: 0.1 °C (0.1 °F)
- Temperature Sensor Type: RTD, 1K Ohm Platinum
