Description

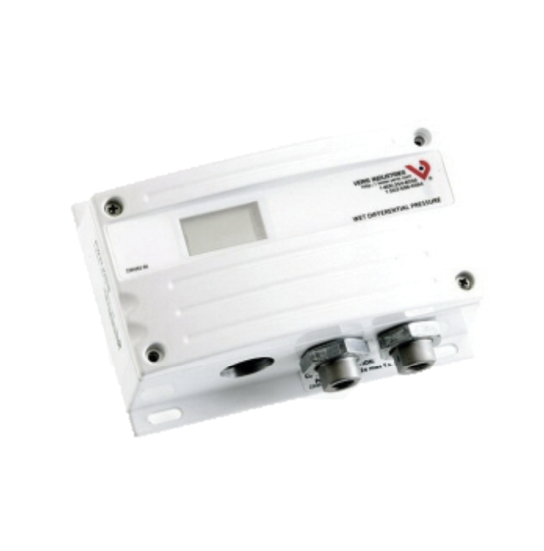

The Veris PW2LX04S is a premium, loop-powered wet-media differential pressure transmitter offering robust performance in industrial HVAC, chiller, pump, and compressor systems. It delivers precise, user-selectable measurement ranges and an intuitive LCD display—designed for easy setup and reliable operation.
Features:
- The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
- Rugged, die-cast enclosure provides NEMA 4 sealing
- Selectable differential units: psid or bard
- Dual sensor design for improved overpressure tolerance, eliminates the requirement for a bypass valve assembly in most applications
- Jumper-controlled electronic surge dampening for high stability
- Pushbutton zero calibration – no trim pots to adjust, maintain accuracy and reduce callbacks with automatic zero calibration
- 2-wire transmitter output
- User-selectable output
- 2 times of maximum full scale range proof pressure
- 5 times of maximum full scale range burst pressure
