Description

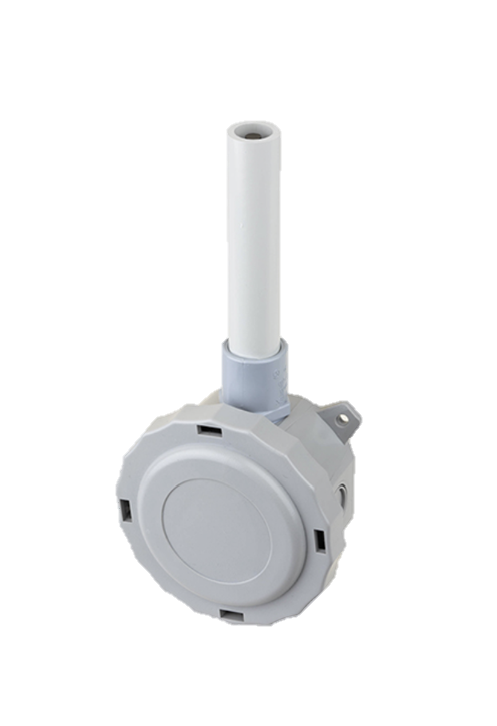

Rugged, sleek, and accurate—meet the Veris TOIR00, a premium outdoor temperature sensor designed for reliable weather-resistant performance and precision HVAC control in building automation systems.
Specifications:
- Application Zone: Outdoor
- Application: Outdoor Reference Air
- Dimension Depth: 2.12″ (54 mm)
- Dimension Height: 4″ (102 mm)
- Dimension Probe Diameter: 0.7″ (18 mm)
- Dimension Probe Length: 4.73″ (102 mm)
- Dimension Width: 4″ (102 mm)
- Electrical Wiring Size: 22 AWG (0.32 mm²)
- Enclosure Material: ABS Plastic
- IP Protection: IP65 (NEMA 4)
- Operating Temperature: -13 – 221 °F (-25 – 105 °C)
- Outputs: Resistive output
- Product Certification: CE
- Range: TO
- Temperature Calibration Certificate: None
- Temperature Measurement Accuracy: ±1.2 °F (±0.7 °C) @ 158 °F (70 °C)
- Temperature Sensor Type: 1k Ohm BALCO (Nickel Iron) RTD
