Description

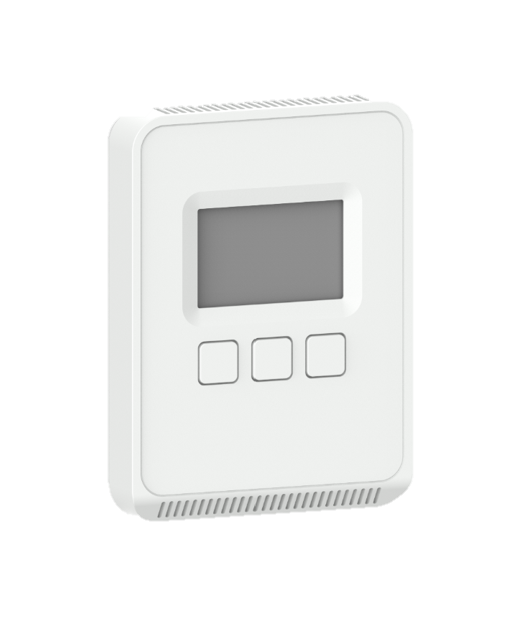

The Veris TW2LAXK is a high-performance wall-mounted temperature sensor designed for precise monitoring in HVAC and building automation systems. Featuring a segmented LCD display and a 10K thermistor with an 11K shunt, this sensor ensures accurate temperature readings across a wide range of applications.
Specifications:
- Display Size: 2.05 in (52 mm)
- Display Type: Segmented LCD, with 3 Buttons
- Electrical Wiring Size: Screw terminals, 18-24 AWG
- Enclosure Material: High impact ABS plastic
- IP Protection: IP20
- Input Specifications: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
- Operating Humidity: 0 to 95% RH non-condensing
- Operating Temperature: 0 to 50 °C (32 to 122 °F)
- Output Specifications: Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
- Outputs: Analog
- Override: Yes
- Setpoint Range: Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F), selectable Fan Speed: Off, Low, Med., High.
- Setpoint Specifications: 0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch)
- Setpoint: Yes
- Standards EMC: EN61000 Series – industrial immunity
- Temperature Measurement Range: 0 to 50 °C (32 to 122 °F)
- Temperature Measurement Resolution: 0.1 °C (0.1 °F)
- Temperature Sensor Type: Thermistor, 10K with 11K Shunt
