Description

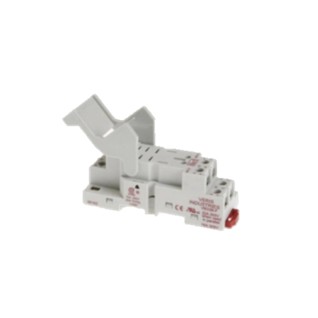

The Veris VBD2B‑F is a premium DPDT blade-style relay socket designed for building automation, industrial machines, and HVAC control panels. With support for 20 A switching at up to 300 V AC/DC, DIN-rail or wall mounting, and full diagnostic features (LED, flag, push-to-test, override), it simplifies installation and maintenance. Compatible with VMD2B-F relay modules and backed by UL, CE, and CSA certifications—the VBD2B‑F offers safety, reliability, and serviceability in professional control systems.
Specifications:
- Application: Building Automation Systems
- Feature Level: Deluxe Socket
- Finger Safe Terminals: Yes
- Hand-Off-Auto: Yes
- Mounting: DIN | Wall
- Operating Temperature: -40 – 131 °F (-40 – 55 °C)
- Product Certification: UL | CE | CSA
- Product Type: Socket relay
- Range: VBD Series
- Relay Configuration: Socket only
- Relay Construction: Mechanical
- Relay Contact Ratings: 20 A @ 120 VAC | 20 A @ 28 VDC | 20 A @ 277 VAC
- Relay Hold-Down Clip: Yes
- Relay Poles/Throw: DPDT
