Description

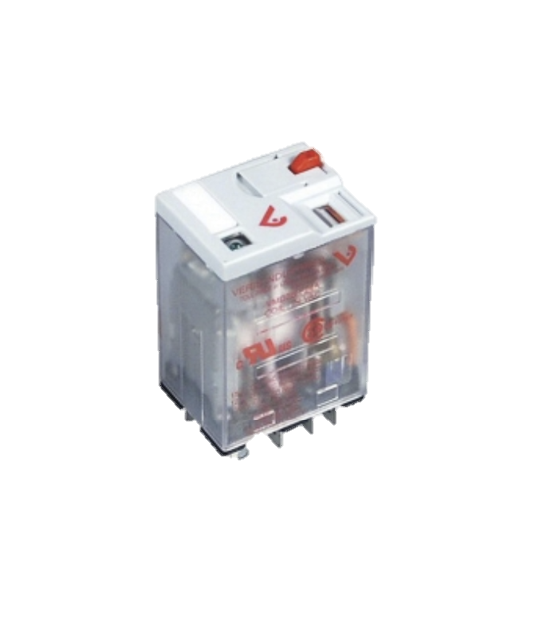

Built for professional-grade reliability in HVAC, building automation, and industrial control, the Veris VMD2B‑F24A is a full-featured DPDT socket relay with integrated diagnostics and flexible mounting options.
Specifications:
- Application: Building Automation Systems
- Feature Level: Deluxe Relay
- Hand-Off-Auto: Yes
- Mounting: DIN | Wall
- Operating Temperature: -40 – 131 °F (-40 – 55 °C)
- Product Certification: UL | CE | CSA
- Range: VMD Series
- Relay Coil Voltage: 24 VAC
- Relay Configuration: Socket only
- Relay Construction: Mechanical
- Relay Contact Ratings: 15 A @ 120 VAC | 12 A @ 28 VDC | 12 A @ 277 VAC
- Relay Poles/Throw: DPDT
