Description

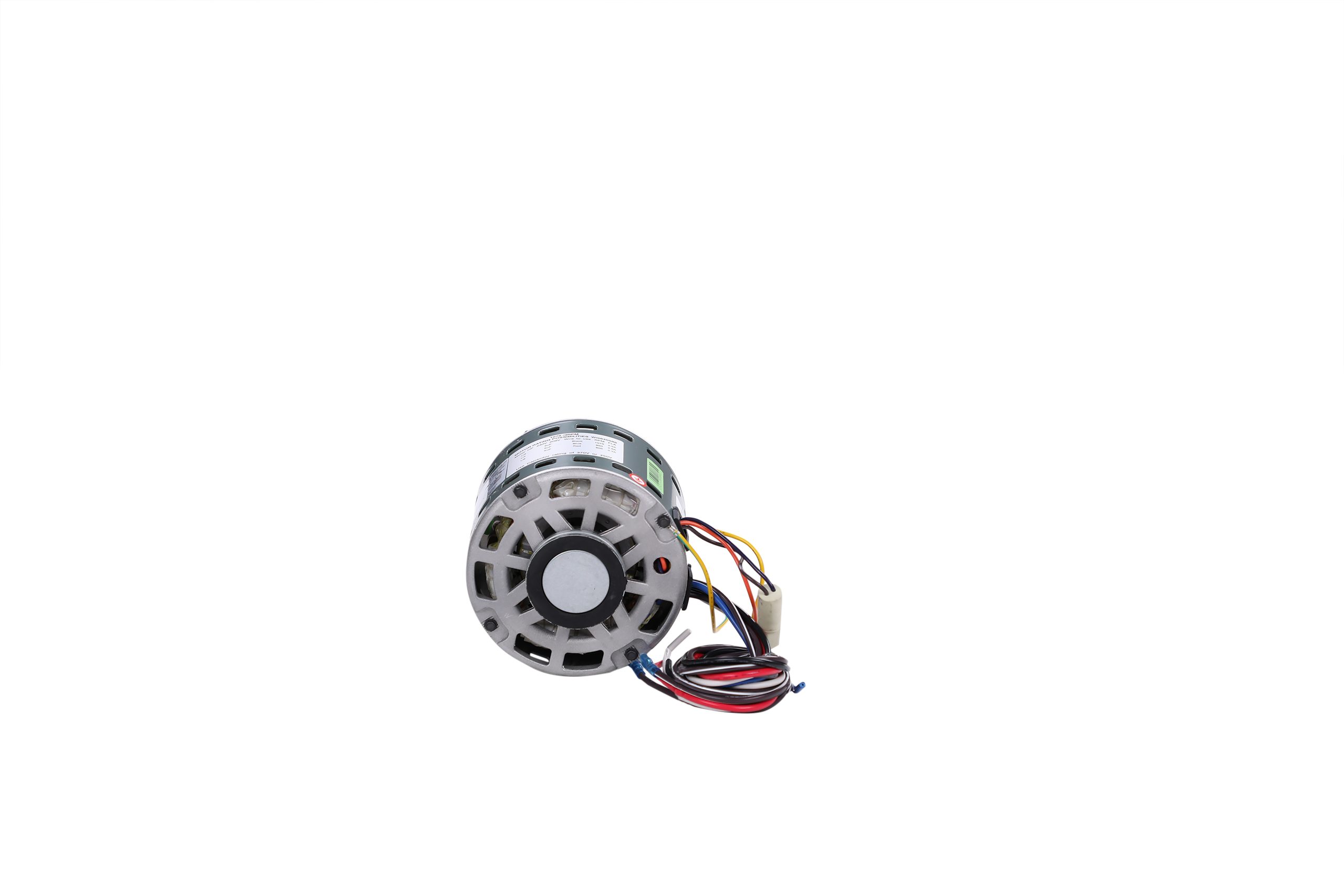

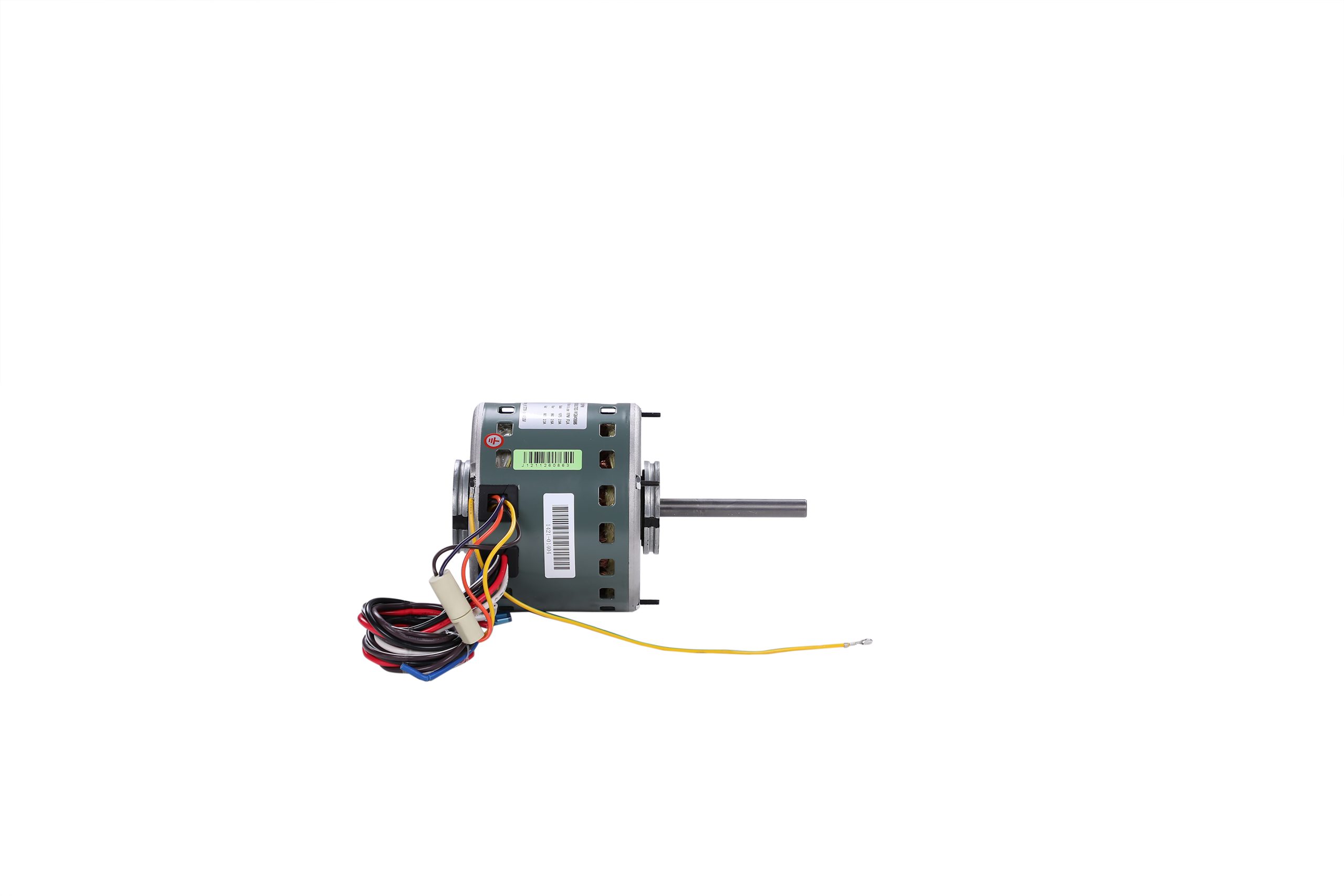

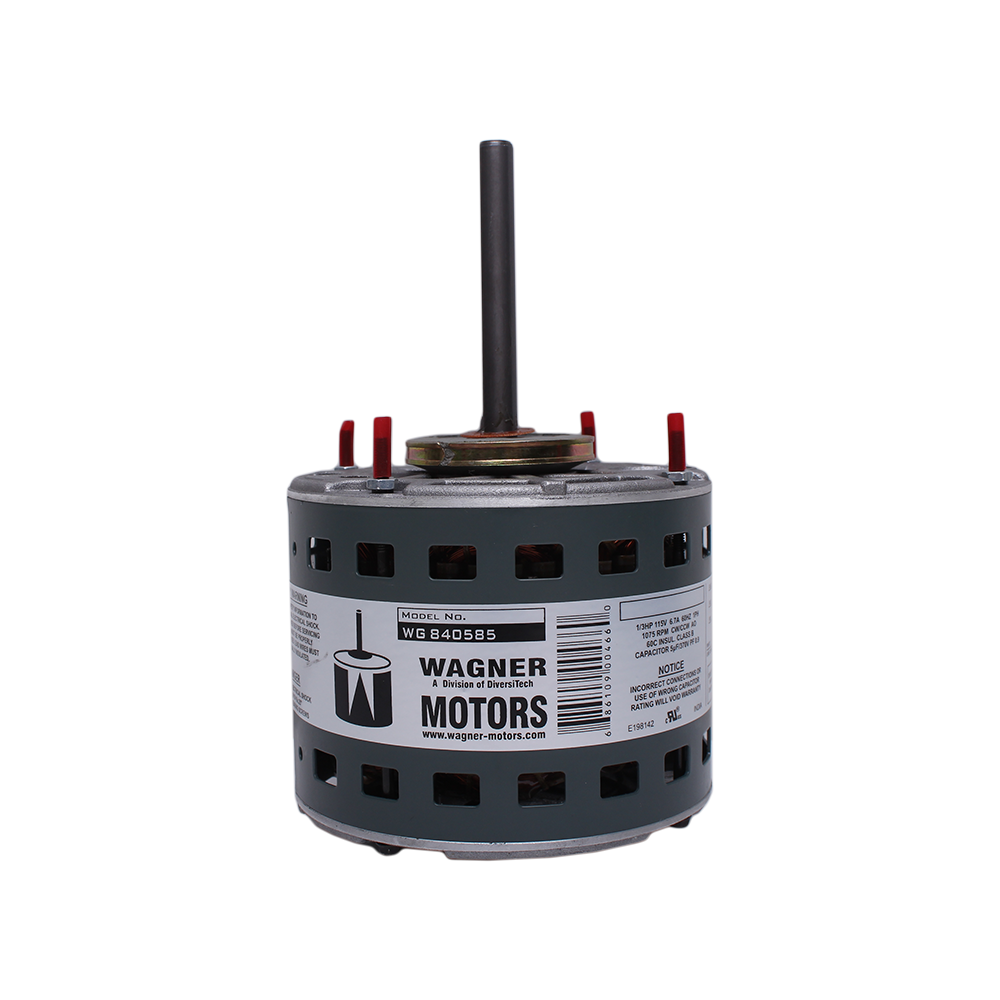

This Wagner® WG840585 Direct Drive Furnace Blower Motors, 1/3hp, 1075/3 RPM, 5.0FLA, 115V motor installs with all standard 48 frame mounting brackets. It is protected by an automatic overload and class B insulation. The motor is electrically reversible a
Motors feature reversing plugs, extended thru bolts, 36 inch leads and low power consumption.
Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life.
Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently.
Run capacitor connections are insulated for increased safety and flag disconnects are provided.
