Description

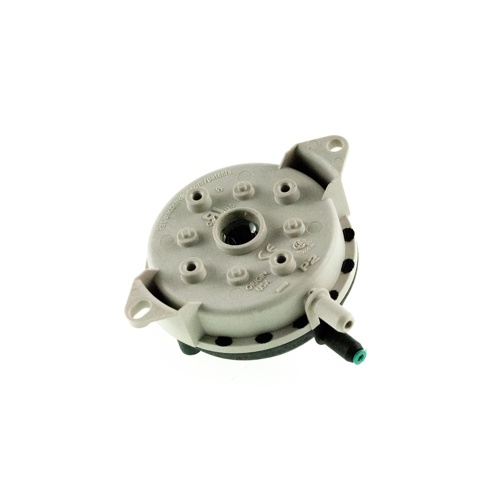

The Weil McLain 511-624-304 is an OEM replacement pressure switch engineered specifically for compatible Weil McLain boiler systems. Rated at a precise 0.80″ w.c. (water column) setpoint, this switch monitors combustion air pressure to verify proper draft inducer or venting operation before allowing ignition to proceed — a critical safety function in modern gas-fired boilers.
How It Works
The pressure switch senses negative or positive pressure generated by the draft inducer motor during the pre-purge cycle. If the sensed pressure does not reach the 0.80″ w.c. threshold, the switch remains open and prevents the ignition sequence from advancing, protecting the appliance and occupants from unsafe combustion conditions.
Key Features
- OEM Weil McLain replacement part — SKU 511-624-304
- Calibrated setpoint: 0.80″ w.c. (water column)
- Designed for use with compatible Weil McLain gas-fired boilers
- Provides reliable draft/combustion air pressure verification
- Helps prevent ignition under unsafe venting conditions
- Direct drop-in replacement for simplified installation
Application
This pressure switch is intended as a direct OEM replacement for qualified HVAC technicians and boiler service professionals servicing Weil McLain equipment. Always verify compatibility with the specific boiler model before installation, and follow all applicable local codes and manufacturer guidelines.
