$95.82

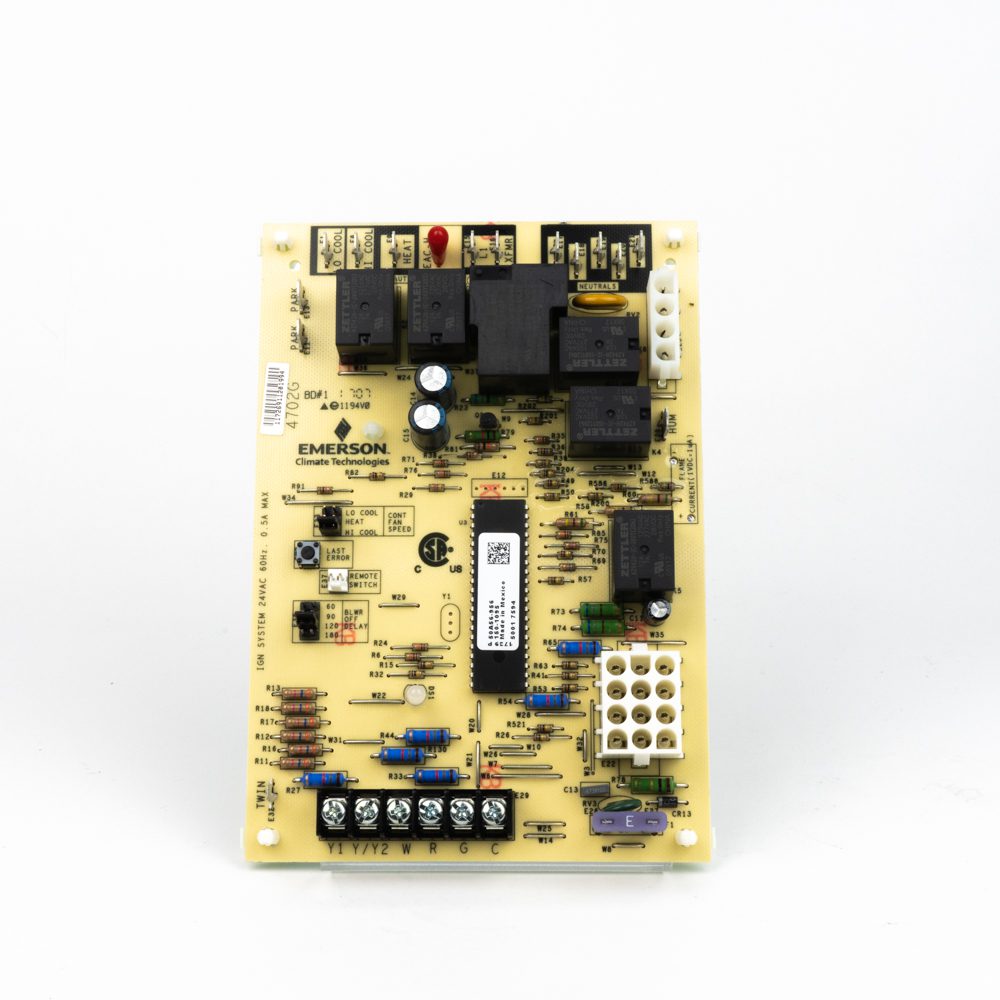

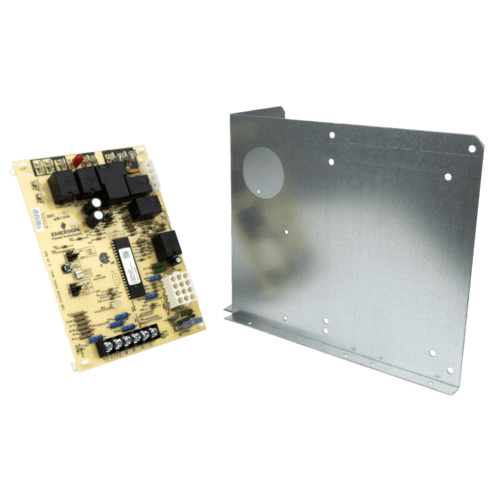

York Single Stage Furnace Control Kit
1 In Stock
| Stages | Single-stage heat; includes Y2 input for two-stage cooling |
|---|---|
| Ignition Type | Integrated Hot Surface Ignition (HSI) |
| Ignitor Voltage | 120 VAC |
| Input Voltage | 25 VAC, 50/60 Hz |
| Gas Valve Relay Rating | 1.5 A @ 25 VAC, 50/60 Hz, 0.6 pf |
| Ignitor Relay Rating | 6.0 A @ 120 VAC, 50/60 Hz |
| Inducer Relay Rating | 2.2 FLA–3.5 LRA @ 120 VAC |
| Circulator Relay Rating | 14.5 FLA–25.0 LRA @ 120 VAC |
| Humidifier Output | 120 VAC |
| Electronic Air Cleaner Output | 120 VAC |
| LED Indicators | System diagnostics LED with fault recall |
| Twinning | Yes |
| Thermostat Inputs | Y, Y2, W, R, G, C, TWIN |
| UPC | 786710548673 |
| Brand | Compatible SKUs |
|---|---|
| York | 265901, 265902, 539617, S1-03100662000, S1-03101250000, S1-03101266000, S1-03101267000, S1-03101267001, S1-03101284000, S1-03101933000, S1-03101972000, S1-03101973000, S1-03109167000, S1-33102956000, S1-33103010000 |
| White-Rodgers | 50A56-242, 50A56-243 |
