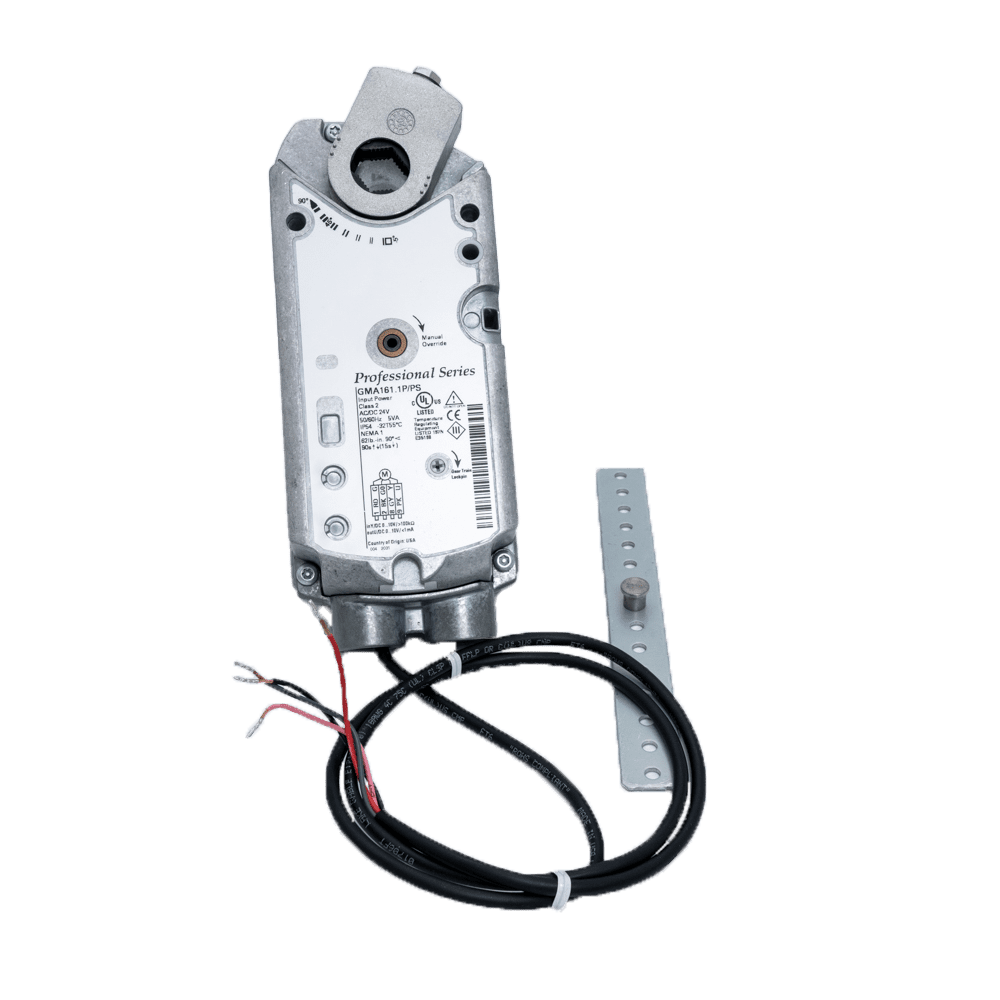

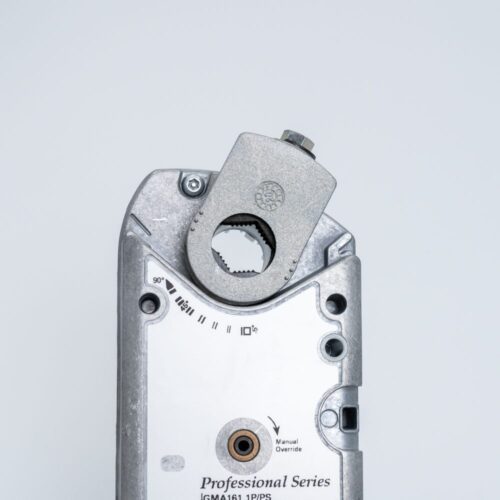

Siemens GMA161.1P Open Air Rotary Spring Return Actuator, 24V

BRAND: Siemens SKU: GMA161.1P/PS

Original price was: $266.86.Current price is: $184.99.

MSRP: $662.02
You save 72%

24V Spring Return Actuator, 0-10 VDC, 62 lb-in

Description

The OpenAir direct-coupled, spring return electronic damper actuators provide modulating, two-position and three-position control of building HVAC dampers.

Features

  • Brushless motor technology
  • Bi-directional fail-safe spring return
  • Unique self-centering shaft coupling
  • Models available with dual, independently adjustable auxiliary switches
  • Floating control models available with feedback potentiometer
  • All modulating control types include built-in feedback capability
  • All metal housing
  • Manual override
  • Mechanical range adjustment capability
  • Easily visible position indicator
  • Precabled
  • UL60730 (to replace UL873) and cUL (C22.2 No. 24-93) listed conformance
  • Small actuator footprint with 62 lb-in of torque
  • 24 Vac/dc compatible

Additional information

Voltage

24V

Angle of Rotation

90

Actuator Type

Fail-Safe

UPC 804766000317
