Description

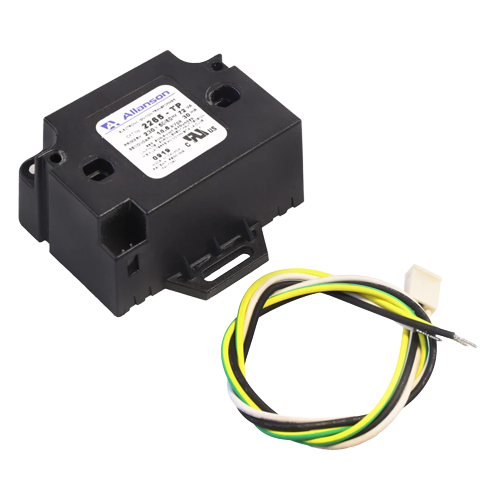

The Allanson 2265-TP is an OEM electronic ignition transformer designed to provide dependable high-voltage spark energy for commercial and industrial gas burner ignition systems. It operates on 240 VAC primary power and delivers approximately 15,600 V peak secondary output with about 65 mA current, supplying consistent ignition performance under constant-duty conditions. This model includes mounting tabs with a primary plug set and pigtails for easier installation and secure electrical connections, making it suitable for a broad range of gas ignition applications.
Key Features
- 240 VAC primary input — standard line voltage for commercial/industrial burners
- 15,600 V peak secondary output for strong and reliable ignition spark energy
- ~65 mA current and ~60 VA rating suited for heavy ignition loads
- Electronic solid-state design for cooler, more efficient operation than ferromagnetic units
- Mounting tabs with primary plug set and pigtails for simplified installation
- Constant-duty operation for sustained performance under load
- Meets EMI/RFI suppression requirements for compliant electrical performance
