Description

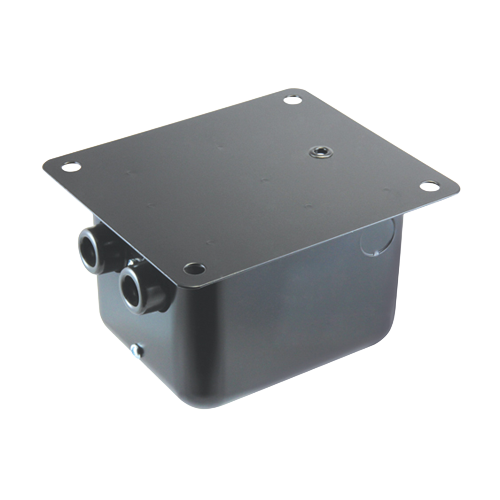

The Allanson 421-659 is an OEM ferromagnetic ignition transformer designed to deliver reliable high-voltage spark energy for Cleaver Brooks, Industrial Combustion, and similar burner systems. It operates on 120 VAC primary power and steps up to 10,000 VAC secondary output with approximately 23 mA and ~250 VA, providing consistent ignition performance for residential, commercial, and industrial HVAC applications. Built to meet burner manufacturer specifications, this transformer features high-temperature internal wiring and a midpoint-grounded double-pole core, which helps it run cool and quieter under continuous duty while complying with EMI/RFI noise emission standards.
Key Features
- 120 VAC primary voltage — standard input for many ignition circuits
- 10,000 VAC secondary output with ~23 mA current for strong ignition spark energy
- ~250 VA constant-duty rating suitable for robust burner ignition loads
- Double-pole ferromagnetic construction for reliable, continuous operation
- Midpoint-grounded core improves voltage stability and electrical safety
- High-temperature internal wiring for extended durability in heat-intensive environments
- Meets American and European EMI/RFI noise emission standards for compliant operation
