Description

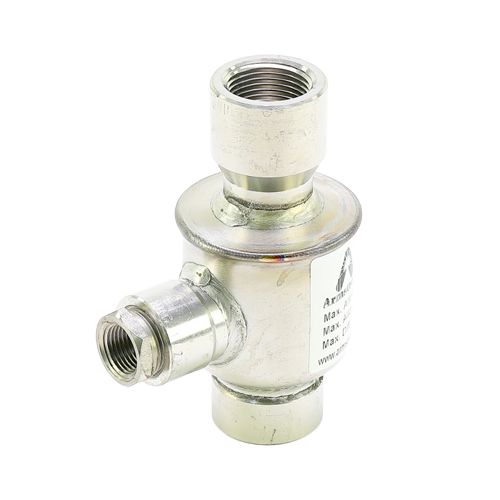

The Armstrong International C5491 TAVB-3 is a premium-grade combination unit that integrates a stainless steel thermostatic air vent with a vacuum breaker in a single, compact assembly — ideal for steam and hydronic heating systems where reliable air elimination and system protection are critical.
Product Overview
Designed for demanding commercial and industrial hydronic and steam applications, the TAVB-3 automatically vents non-condensable gases and air from the system while the integrated vacuum breaker prevents the formation of damaging vacuum conditions. The all-stainless steel construction ensures long-term corrosion resistance and durability in high-temperature, high-pressure environments.
Key Features
- Combination thermostatic air vent and vacuum breaker in one assembly
- Stainless steel construction for superior corrosion resistance and longevity
- 3/4″ NPT connection for the thermostatic air vent
- 3/8″ NPT connection for the vacuum breaker
- Rated for pressures up to 150 PSI
- Thermostatic operation automatically vents air and non-condensable gases
- Vacuum breaker protects system against vacuum-induced damage and water hammer
- Compact, dual-function design simplifies installation and reduces system components
Specifications
- SKU: C5491
- Model: TAVB-3
- Brand: Armstrong International
- Air Vent Connection: 3/4″ NPT
- Vacuum Breaker Connection: 3/8″ NPT
- Maximum Working Pressure: 150 PSI
- Body Material: Stainless Steel
Applications
- Steam heating systems
- Hydronic heating and cooling systems
- Commercial and industrial HVAC piping systems
- Process piping requiring air elimination and vacuum protection
