Description

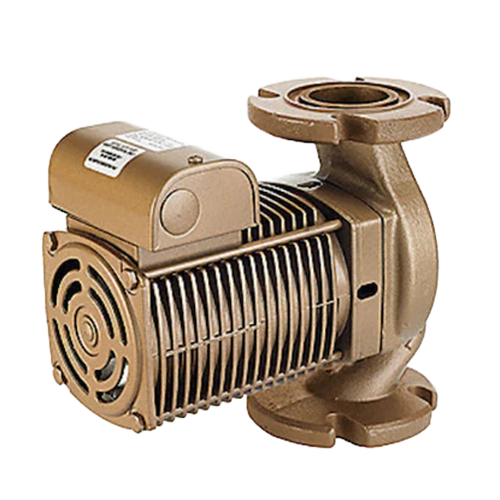

The Armstrong Fluid Technology ARMflo E16.2B Bronze Circulator Pump (Model 182202-654) is engineered for dependable, long-term performance in both residential and commercial fluid circulation applications. Whether you’re maintaining a hydronic heating system, radiant floor loop, or light commercial installation, this circulator delivers the flow rates and pressure capacity to keep your system running efficiently.
Powered by a 1/6 HP, 120-volt, single-phase motor operating at 3400 RPM, the E16.2B is designed for consistent, high-efficiency circulation with minimal maintenance. Its robust cast iron construction provides exceptional durability and resistance to the rigors of continuous operation, while its compact footprint simplifies installation in tight mechanical spaces.
Key Benefits:
- Reliable 1/6 HP, 3400 RPM motor for strong, consistent flow performance
- Rated up to 150 psi working pressure and 230°F maximum fluid temperature
- Cast iron pump construction built for long service life and corrosion resistance
- Compact, space-saving design for straightforward installation
- Single-phase, 120V operation for broad compatibility
- Suitable for a wide range of residential and commercial hydronic applications
Technical Specifications:
- Motor HP: 1/6 HP
- Motor RPM: 3400 RPM
- Motor Voltage: 120V
- Motor Phase: 1-Phase
- Maximum Temperature: 230°F
- Working Pressure: 150 PSI
- Pump Construction: Cast Iron
- Flanges Included: No
