Description

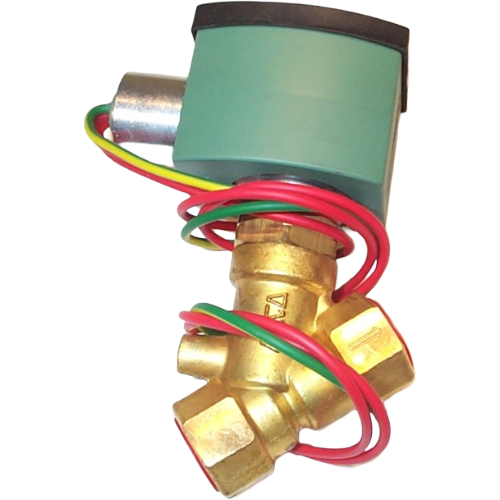

ASCO 8030G71 Two-Way Normally Open Solenoid Valve
The ASCO 8030G71 is a two-way, normally open solenoid valve engineered for reliable on/off control of air and water in commercial and industrial HVAC and fluid-handling applications. With a rugged brass body, NBR (Buna-N) seals, and a NEMA 4X-rated enclosure, this valve is built to perform in demanding environments where moisture, dust, and corrosion resistance are essential.
Key Features
- 2-way, normally open (N/O) configuration — valve opens when de-energized, closes when energized
- 1/2″ NPT port connections for easy inline installation
- 120VAC coil voltage for standard commercial power compatibility
- 2.2 Cv flow coefficient for efficient media throughput
- Operating pressure range: 0–15 PSI
- Brass body construction for corrosion resistance and durability
- NBR (Nitrile Butadiene Rubber) seals compatible with air and water media
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, protects against washdown, rain, and corrosion
Specifications
- Brand: ASCO
- Model / SKU: 8030G71
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N/O)
- Port Size: 1/2″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 2.2
- Pressure Range: 0–15 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile / Buna-N)
- Enclosure Rating: NEMA 4X
- Compatible Media: Air and Water
Applications
- HVAC air and water flow control systems
- Commercial building automation and controls
- Industrial fluid handling and process control
- Pneumatic and hydraulic systems operating at low pressure
- Washdown or outdoor environments requiring NEMA 4X protection
Why Choose the ASCO 8030G71?
ASCO is a globally recognized leader in solenoid valve technology. The 8030G71 combines a time-tested normally open design with a weatherproof NEMA 4X enclosure and chemically resistant NBR seals, making it a versatile choice for HVAC professionals and industrial contractors who need dependable, low-pressure fluid control in tough environments.
