Description

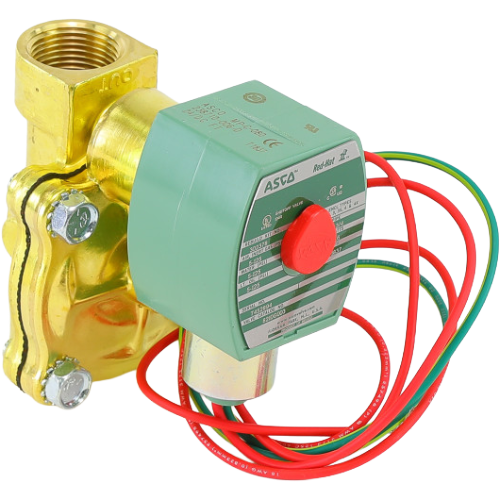

ASCO 8210G3-24VDC General Service Solenoid Valve Overview
The ASCO 8210G3-24VDC is a 2-way, normally closed, pilot-operated solenoid valve engineered for dependable general-service fluid control in commercial and industrial HVAC, plumbing, and light industrial applications. Built on ASCO’s trusted 8210 Series platform, this valve delivers consistent shutoff performance across a wide range of compatible media including air, water, and light oil.
Key Features
- 2-way, normally closed (NC) configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation across the full pressure range
- 3/4″ NPT port connection for straightforward inline installation
- 24VDC coil voltage for compatibility with low-voltage control systems
- Flow coefficient (Cv) of 6.5 for reliable, high-flow performance
- Operating pressure range: 5–125 PSI
- Compatible media: air, water, and light oil
- Brass body construction for corrosion resistance and durability
- NBR (Buna-N) seals for broad chemical compatibility with standard HVAC and plumbing fluids
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, including washdown and corrosive environments
Specifications
- Model: 8210G3-24VDC
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC), Pilot Operated
- Port Size: 3/4″ NPT
- Coil Voltage: 24VDC
- Flow Coefficient (Cv): 6.5
- Pressure Range: 5–125 PSI
- Compatible Media: Air, Water, Light Oil
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service Type: General Service
Applications
- HVAC water and air control systems
- Pneumatic and compressed air lines
- Light oil supply and shutoff circuits
- Commercial plumbing and process control
- Automated irrigation and fluid distribution systems
Why Choose the ASCO 8210G3-24VDC?
ASCO is a globally recognized leader in fluid automation and solenoid valve technology. The 8210G3-24VDC combines a robust brass body with NEMA 4X environmental protection, making it equally at home in mechanical rooms, rooftop equipment, and outdoor installations. The NBR seal package ensures long service life with water and light oil media, while the 24VDC coil integrates seamlessly with standard building automation and control systems.
