Description

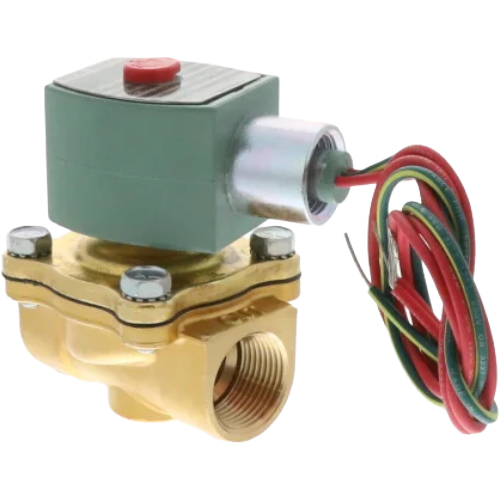

ASCO 8210G9-240V General Service Solenoid Valve Overview
The ASCO 8210G9-240V is a 2-way, normally closed, pilot-operated solenoid valve engineered for dependable general-service performance across a wide range of HVAC, industrial, and fluid-control applications. Built with a durable brass body and NBR (Buna-N) seals, this valve handles air, water, and light oil with ease, making it a versatile choice for mechanical rooms, process systems, and commercial HVAC installations.
Key Features
- 2-way, normally closed configuration — valve closes automatically when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation
- 3/4″ NPT port connections for straightforward inline installation
- 240VAC coil voltage for compatibility with standard commercial power circuits
- 5 Cv flow coefficient for strong, consistent flow capacity
- Operating pressure range: 5–125 PSI
- Compatible media: air, water, and light oil
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals provide reliable sealing across compatible media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdowns, rain, and corrosion
Specifications
- SKU: 8210G9-240V
- Brand: ASCO
- Valve Type: 2-Way Normally Closed, Pilot Operated
- Connection Size: 3/4″ NPT
- Coil Voltage: 240VAC
- Flow Coefficient (Cv): 5
- Pressure Range: 5–125 PSI
- Compatible Media: Air, Water, Light Oil
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service Type: General Service
Applications
- HVAC water and air control systems
- Commercial and industrial fluid control
- Light oil handling and distribution systems
- Process automation and building automation systems
- Compressed air systems
