Description

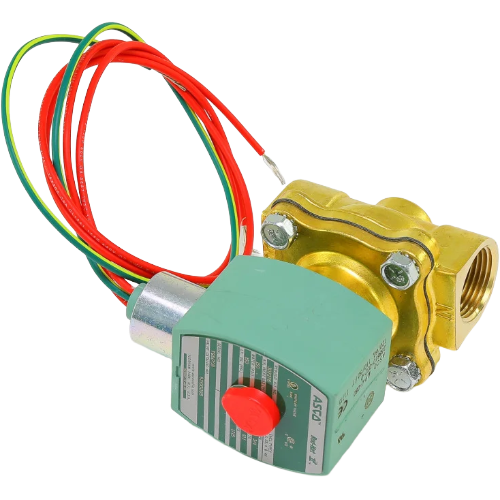

ASCO 8210G95 General Service Solenoid Valve Overview
The ASCO 8210G95 is a 2-way, normally closed, pilot-operated solenoid valve engineered for dependable general service performance in both air and water applications. Built with a robust brass body and NBR (Buna-N) seals, this valve delivers long-lasting, leak-free operation across a wide range of commercial and industrial HVAC, plumbing, and process control systems. The NEMA 4X enclosure rating ensures reliable performance in wet, corrosive, and washdown environments.
Key Specifications
- SKU / Model: 8210G95
- Valve Type: 2-Way, Normally Closed (NC)
- Operation: Pilot Operated
- Port Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient: 5 Cv
- Pressure Range: 0–150 PSI
- Media: Air and Water
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
Features & Benefits
- Normally Closed Design: Valve remains closed when de-energized, providing a fail-safe shutoff for critical systems
- Pilot-Operated Actuation: Uses line pressure to assist opening, enabling efficient operation across the full rated pressure range
- Brass Body Construction: Offers excellent corrosion resistance and durability for air and water service
- NBR Seals: Compatible with water, air, and a broad range of general-purpose media
- NEMA 4X Enclosure: Rated for indoor and outdoor use, providing protection against dust, splashing water, and corrosion
- 5 Cv Flow Rate: Delivers strong, consistent flow capacity for 3/4″ line applications
- 120VAC Coil: Standard North American voltage for easy integration into existing control panels and systems
Typical Applications
- HVAC water and air control systems
- Compressed air lines and pneumatic systems
- Irrigation and water distribution
- Industrial process control
- Commercial building automation
Why Choose ASCO?
ASCO is a globally recognized leader in solenoid valve technology, trusted by engineers and technicians for precision, reliability, and long service life. The 8210G95 is part of ASCO’s 8210 Series — a proven general-service line designed to meet the demands of everyday fluid control in commercial and light industrial environments.
