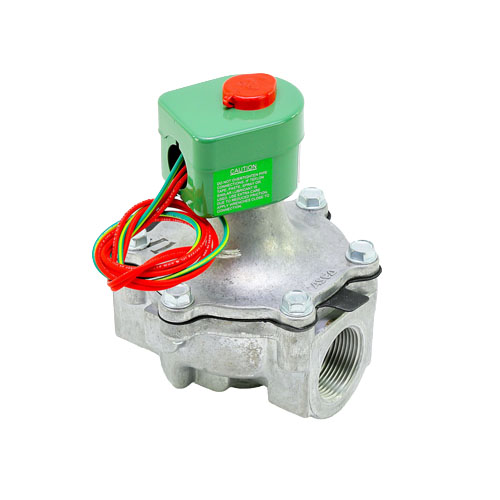

ASCO 8215B60 2-Way Normally Closed Air-Fuel Gas Shutoff Solenoid Valve
The ASCO 8215B60 is a heavy-duty, 2-way normally closed solenoid valve engineered for reliable air-fuel gas shutoff in commercial and industrial HVAC and combustion applications. With a high flow capacity of 32 Cv and a rated capacity of 1,730,000 BTU/hr, this valve is built to handle demanding gas control requirements with precision and dependability.
Key Features
- 2-way, normally closed (N/C) solenoid valve — closes automatically when de-energized for fail-safe operation
- 1-1/4″ NPT pipe connection for straightforward installation into standard gas piping systems
- 120VAC coil voltage for compatibility with common commercial power supplies
- High flow coefficient of 32 Cv for minimal pressure drop and maximum throughput
- Rated capacity of 1,730,000 BTU/hr — ideal for large commercial burners and heating systems
- Operating pressure range: 0–25 PSI
- Aluminum body construction for a lightweight yet durable build
- NBR (Buna-N) seals providing excellent resistance to natural gas, propane, and air
- NEMA 1 enclosure rating for indoor installations in clean, dry environments
Specifications
- SKU: 8215B60
- Brand: ASCO
- Valve Type: 2-Way Solenoid, Normally Closed
- Connection Size: 1-1/4″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 32
- Capacity: 1,730,000 BTU/hr
- Pressure Range: 0–25 PSI
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Enclosure: NEMA 1
- Media: Air / Fuel Gas
Applications
- Commercial and industrial gas burner shutoff
- Boiler and furnace fuel gas control
- Air-fuel ratio control systems
- Combustion safety shutoff systems
- HVAC heating equipment gas supply control
Why Choose the ASCO 8215B60?
ASCO is a globally recognized leader in solenoid valve technology, trusted by HVAC professionals and industrial engineers for decades. The 8215B60 combines a robust aluminum body, chemical-resistant NBR seals, and a high-capacity flow design to deliver consistent, safe gas shutoff performance. Its normally closed design ensures the gas supply is automatically cut off during power loss — a critical safety feature for any combustion system.
