Description

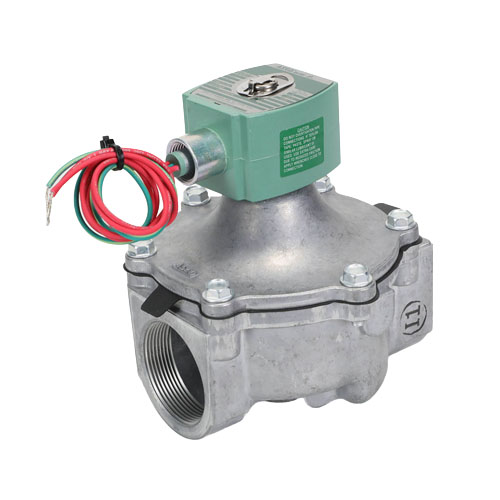

ASCO 8215G080VM-24VDC 2-Way Normally Closed Aluminum Solenoid Valve
The ASCO 8215G080VM-24VDC is a heavy-duty, 2-way normally closed solenoid valve engineered for dependable fluid control in demanding HVAC and industrial applications. Featuring a robust aluminum body and a 24V DC coil rated at 15.8 watts, this valve delivers consistent, energy-efficient performance across a wide range of system configurations.
Designed to remain closed in its de-energized state, this normally closed valve provides a critical fail-safe function — automatically shutting off flow in the event of a power interruption. When energized, the valve opens to allow controlled fluid passage through its 2-inch port, making it well-suited for water, air, and compatible media in commercial and industrial HVAC systems.
Key Features
- 2-Way, Normally Closed (NC) configuration for fail-safe shutoff
- 2-inch port size for high-flow capacity
- 24V DC coil voltage for compatibility with low-voltage control systems
- 15.8-watt full-watt coil for reliable actuation
- Aluminum body construction for lightweight durability and corrosion resistance
- ASCO Series 8215 — trusted for commercial and industrial fluid control
Specifications
- Brand: ASCO
- Model: 8215G080VM
- SKU: 8215G080VM-24VDC
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Port Size: 2 inch
- Body Material: Aluminum
- Coil Voltage: 24V DC
- Coil Wattage: 15.8W (Full Watt)
Applications
- Commercial HVAC water and air systems
- Industrial process fluid control
- Automated shut-off and on/off control circuits
- Building automation and controls integration
