Description

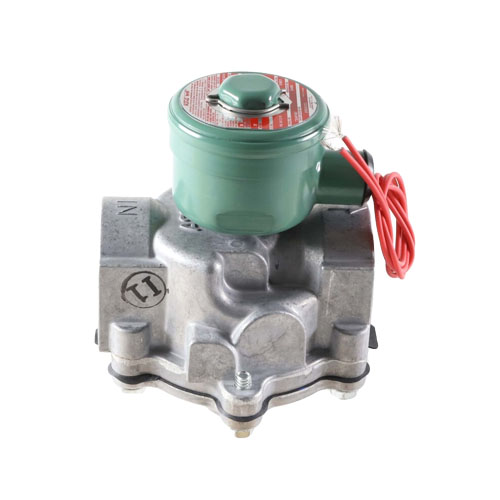

The ASCO EF8215C53 is a heavy-duty, 2-way normally open solenoid valve engineered for demanding air-fuel gas vent applications in commercial and industrial HVAC and combustion systems. Featuring an explosion-proof enclosure, this valve is built to perform reliably in hazardous environments where safety and dependability are non-negotiable.
Key Features
- 2-way, normally open configuration — valve opens when de-energized for fail-safe operation
- 1″ NPT connection for straightforward installation into standard pipe systems
- 120VAC operating voltage for compatibility with common commercial power supplies
- High flow capacity with a 22 Cv rating, supporting up to 1,191,750 BTU/hr
- Operating pressure range: 0–25 PSI
- Explosion-proof enclosure for safe use in hazardous or classified locations
- Aluminum body construction for a lightweight yet durable build
- NBR (Buna-N) seals for reliable performance with air and fuel gas media
Specifications
- SKU: EF8215C53
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N.O.)
- Connection Size: 1″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 22
- BTU Capacity: 1,191,750 BTU/hr
- Pressure Range: 0–25 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Type: Explosion Proof
- Media: Air, Fuel Gas
Applications
- Air-fuel gas vent systems in commercial and industrial burner applications
- Combustion safety shutoff and vent valve service
- Hazardous location installations requiring explosion-proof rated components
- Natural gas, propane, and mixed fuel gas distribution systems
- Boiler, furnace, and process heating equipment
The ASCO EF8215C53 is the trusted choice for HVAC and combustion professionals who require a certified, high-flow solenoid valve with explosion-proof protection. Its normally open design ensures a fail-safe default state, while the robust aluminum body and NBR seals deliver long-lasting service across a wide range of gas media.
