Description
Belimo LF24-3 US 24 volt, 5VA, spring return, floating point, 35 lbs-in

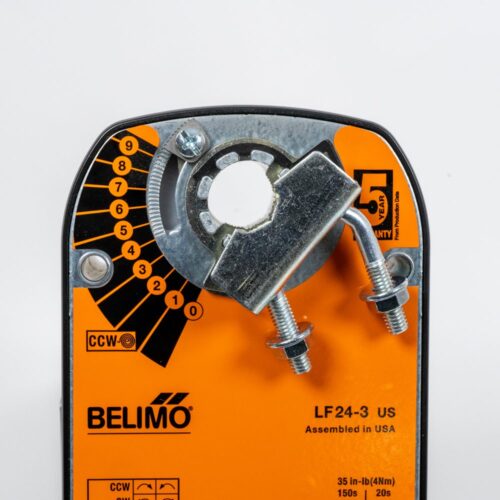

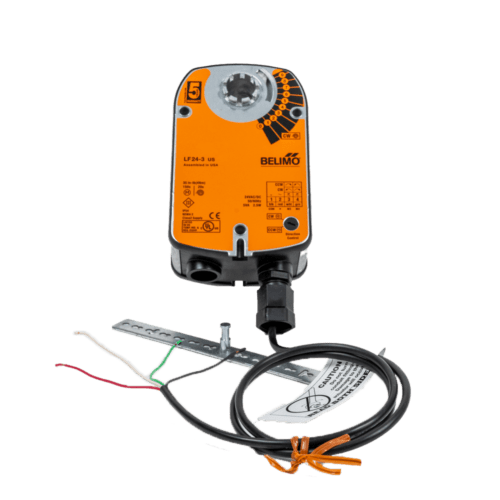

Belimo LF24-3 US 35in-lb Spring Return Floating Point Actuator
$272.70
35in-lb Spring Return Floating Point Actuator
Availability:
Ships By March 29
Additional information
| Application | Duct |
|---|---|
| Actuator Type | Spring Return |
| Control Type | On/Off, Floating Point |
| Control Voltage | 24 VAC/VDC |
| Fail Safe Mode | Fail Safe |
| Torque | 35 lb-in (4 N·m) |
| Rotation Angle | 95 deg |
| Ambient Temperature Range | -22–122°F (-30–50°C) |
| Dimensions | 7.66 in x 3.86 in x 3.23 in |
| Ingress Protection Rating | IP54 |
| Noise Rating | 30, 62 dB(A) |
| Warranty | 5 years |
Compatible Products
| Brand | Compatible SKUs |
|---|---|
| Johnson Controls | M110AGA-1 |
| Invensys | MF40-7043 |
