Description

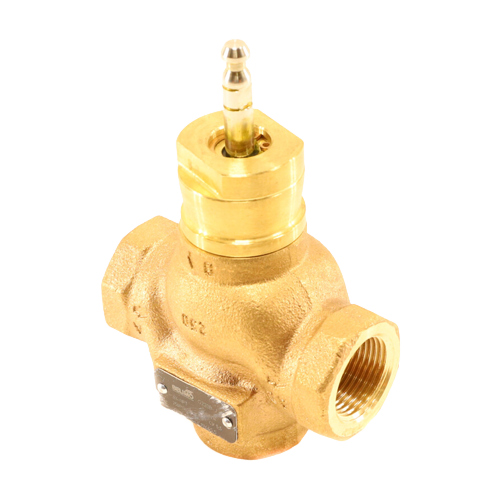

The Belimo G220B-J is a precision-engineered 2-way globe valve designed for demanding hydronic and HVAC applications. Built with a durable bronze body and brass trim, this valve delivers dependable, long-service performance in commercial and industrial systems.
Flow Characteristics
The G220B-J features a modified equal percentage flow characteristic, providing smooth, stable control across the full range of valve travel. The stem-up-to-open configuration ensures predictable actuation and consistent system response, making it well-suited for heating and cooling coil control, heat exchangers, and terminal unit applications.
Key Specifications
- Body Size: 3/4 inch
- Connection Type: NPT (National Pipe Thread)
- Configuration: 2-Way
- Flow Coefficient (Cv): 5.5
- Flow Characteristic: Modified Equal Percentage
- Actuation: Stem Up to Open
- Body Material: Bronze
- Trim Material: Brass
Design & Construction
- Bronze body construction for excellent corrosion resistance and durability
- Brass trim for reliable sealing and long service life
- NPT threaded connections for straightforward installation into standard piping systems
- Designed for compatibility with Belimo actuators for complete valve-actuator assembly
Applications
- Hydronic heating and cooling systems
- Fan coil units and air handling units
- Heat exchangers and chilled water coils
- Commercial HVAC terminal control
The Belimo G220B-J is part of Belimo’s trusted globe valve lineup, engineered to pair seamlessly with Belimo actuators for complete, factory-matched control assemblies. Its compact 3/4″ NPT form factor and 5.5 Cv rating make it an ideal choice for smaller terminal units and zone control applications where precise flow modulation is required.
