Bell & Gossett 179258LF 1/2HP 115/208-230V In-Line Centrifugal Pump e9009S

Description

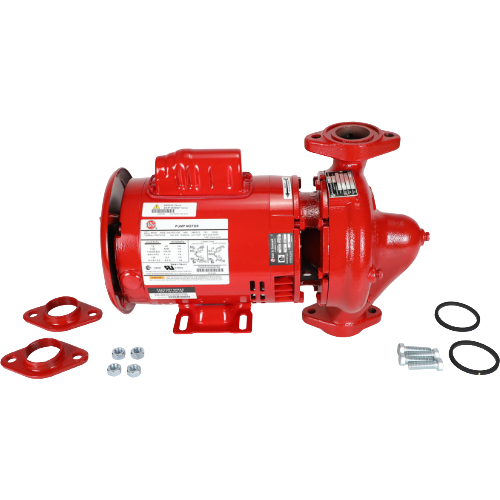

Bell & Gossett 179258LF Close Coupled In-Line Centrifugal Pump (Model e9009S)

The Bell & Gossett 179258LF is a heavy-duty, close coupled in-line centrifugal pump engineered for reliable hydronic heating, cooling, and fluid circulation applications. Built with a cast iron bronze fitted construction, this pump delivers exceptional durability and corrosion resistance in demanding commercial and industrial environments. The compact in-line design allows for straightforward installation directly into the piping system, minimizing space requirements and reducing installation time.

Key Features

• Close coupled, in-line centrifugal design for space-saving installation
• Cast iron body with bronze fitted internals for long-lasting corrosion resistance
• 5″ impeller diameter for optimized flow and pressure performance
• 1-1/2″ suction and discharge connections for easy system integration
• Single-phase motor for compatibility with standard electrical service
• Dual voltage capability (115/208-230V AC) for installation flexibility
• 1725 RPM motor speed for efficient, quiet operation

Electrical Specifications

• Motor Horsepower: 1/2 HP
• Voltage: 115/208-230V AC
• Phase: Single Phase
• Motor Speed: 1725 RPM

Pump Specifications

• Pump Type: Close Coupled In-Line Centrifugal
• Impeller Diameter: 5″
• Suction Connection: 1-1/2″
• Discharge Connection: 1-1/2″
• Body Material: Cast Iron
• Fitted Material: Bronze
• Model: e9009S
• SKU: 179258LF

Ideal Applications

• Hydronic heating and cooling systems
• Commercial and industrial fluid circulation
• Boiler system water circulation
• HVAC chilled and hot water loops
• Process water systems

The Bell & Gossett e9009S series is a trusted choice among mechanical contractors and HVAC professionals who demand reliable performance and easy serviceability. The dual-voltage motor eliminates the guesswork when connecting to varying electrical supplies, while the cast iron bronze fitted construction ensures longevity in both clean and mildly corrosive water systems.
