Description

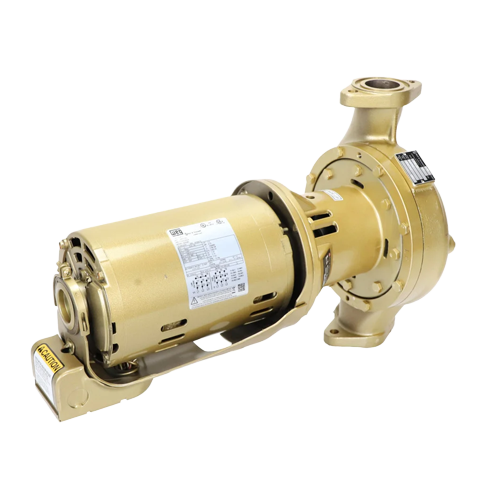

The Bell & Gossett 1EF077LF (Model Be614T) is a heavy-duty, maintenance-free, all-bronze small flex coupled in-line centrifugal pump engineered for demanding hydronic and fluid-handling applications. With a 1 HP motor operating on 208-230/460V three-phase power at 1750 RPM, this pump delivers reliable, efficient performance in commercial and industrial systems where corrosion resistance and long service life are critical.
Key Features
- All-bronze construction for superior corrosion resistance in a wide range of fluid applications
- Maintenance-free design reduces downtime and total cost of ownership
- Small flex coupled in-line configuration for easy installation and alignment
- 1 HP motor rated for 208-230/460V AC three-phase power
- 1750 RPM motor speed for consistent, efficient fluid delivery
- 6.25″ impeller diameter for optimized flow and head performance
- 1-1/2″ suction and discharge connections for straightforward piping integration
Specifications
- SKU: 1EF077LF
- Model: Be614T
- Brand: Bell & Gossett
- Motor Horsepower: 1 HP
- Voltage: 208-230/460V AC
- Phase: Three Phase
- Motor Speed: 1750 RPM
- Impeller Diameter: 6.25″
- Suction Connection: 1-1/2″
- Discharge Connection: 1-1/2″
- Construction: All Bronze
- Pump Type: Flex Coupled In-Line Centrifugal
Applications
- Hydronic heating and cooling systems
- Commercial and industrial fluid circulation
- Chilled water and hot water distribution loops
- Process fluid handling requiring corrosion-resistant materials
The Bell & Gossett 1EF077LF is built to the exacting standards that Bell & Gossett is known for, making it an ideal choice for mechanical contractors, engineers, and facility managers who demand reliability and performance from their hydronic pump systems.
