Description

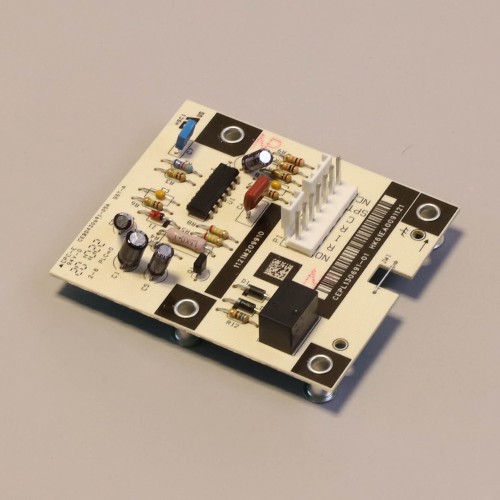

The Carrier HK61EA009 is an OEM time delay relay engineered specifically for use in Carrier heating and cooling systems. Time delay relays play a critical role in HVAC system sequencing — preventing compressor short-cycling, controlling blower fan off-delays, and protecting system components from premature re-engagement after shutdown or startup events.
Why Time Delay Relays Matter
In modern HVAC systems, precise timing control is essential to equipment longevity and efficiency. The HK61EA009 introduces a controlled delay between switching events, reducing mechanical stress on compressors, motors, and contactors. This protection helps extend the service life of the overall system and minimizes costly callbacks.
Key Features
- OEM Carrier replacement part — ensures proper fit and function
- Designed for sequencing and short-cycle protection in Carrier HVAC systems
- Provides controlled time delay between system switching events
- Helps protect compressors and motors from rapid restart damage
- Direct drop-in replacement for simplified installation
- Supports reliable, long-term system operation
Applications
- Carrier residential and light commercial HVAC systems
- Compressor short-cycle protection circuits
- Blower fan on/off delay sequencing
- Control board relay replacement and service
Installation Notes
Always refer to the original equipment wiring diagram and service manual before installation. Disconnect all power to the unit prior to replacing any electrical components. Verify compatibility with your specific Carrier model using the OEM part number HK61EA009.
