Description

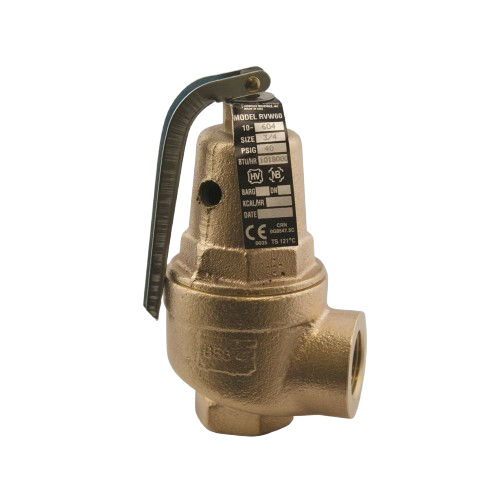

The Conbraco 10-614-12 is a durable, high-capacity safety relief valve designed for hot-water heating systems. With a bronze body and silicone seating, this valve reliably protects boilers and water heaters from overpressure situations, ensuring safety and system longevity.
Key Features
- Set Pressure: 60 PSI – ideal for standard hot-water heating applications.
- Connections: ¾″ female NPT inlet × 1″ female NPT outlet, enabling easy integration with common plumbing configurations.
- Material: Robust bronze construction resists corrosion and withstands long-term use.
- Seat Material: Silicone seat ensures tight sealing and reliable operation under pressure.
- Capacity: Rated for up to 1,641,000 BTU, making it suitable for large or high-demand heating systems.
- Temperature Rating: Operates up to 250 °F, aligning with typical hot-water boiler temperatures.
- Certification: ASME Section IV capacity certified, delivering high reliability and performance. stea
- Design: Equipped with a diaphragm-isolated spring chamber and elevated seat for effective drainage and long valve life.
