Description
Overview

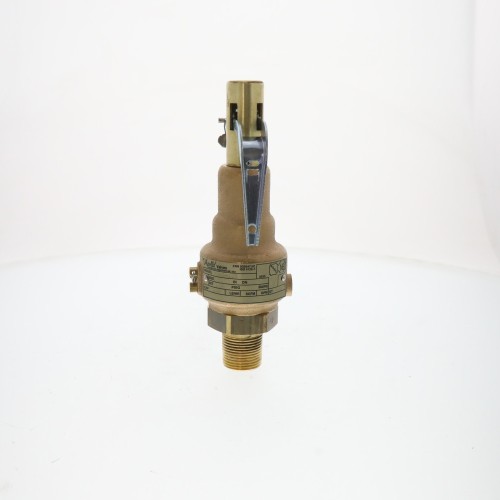

The Conbraco Industries 19-KEDA-125 is a Section I steam pressure relief valve engineered for dependable overpressure protection in commercial and industrial steam boiler systems. With a 3/4″ Male NPT inlet and 1″ Female NPT outlet, it integrates easily into standard steam piping configurations and delivers a rated capacity of 1,404 pounds per hour to handle high-demand steam applications.
Key Features
- Set pressure: 125 PSI for precise, consistent pressure relief
- Capacity: 1,404 pounds per hour (lbs/hr) steam flow
- Inlet connection: 3/4″ Male NPT
- Outlet connection: 1″ Female NPT
- Brass trim construction for corrosion resistance and long service life
- Teflon seat for a reliable, leak-free seal and smooth valve operation
- ASME Section I rated — designed and certified for steam boiler applications
Construction & Materials
The 19-KEDA-125 features durable brass trim that resists the corrosive effects of steam and condensate, while the Teflon seat ensures a tight, dependable seal cycle after cycle. These materials work together to minimize maintenance requirements and extend valve service life in demanding steam environments.
Compliance & Certification
- ASME Section I certified — meets the requirements for steam boilers operating under the ASME Boiler and Pressure Vessel Code
Typical Applications
- Commercial and industrial steam boilers
- Steam heating systems
- Process steam equipment requiring Section I certified safety relief
Specifications
- SKU: 19-KEDA-125
- Brand: Conbraco Industries
- Inlet: 3/4″ Male NPT
- Outlet: 1″ Female NPT
- Set Pressure: 125 PSI
- Capacity: 1,404 lbs/hr
- Trim Material: Brass
- Seat Material: Teflon
- Code Compliance: ASME Section I
