Description

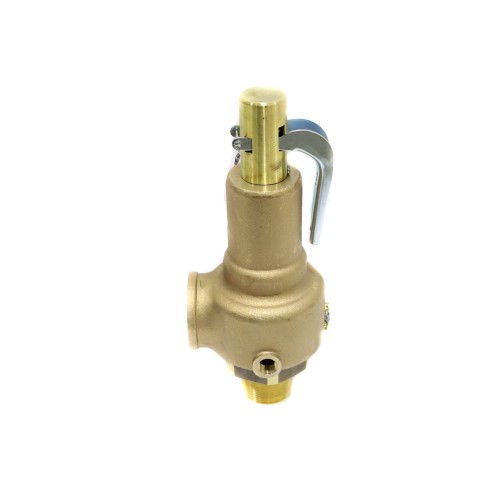

Conbraco Industries 19-KHGA-125 Section I Steam Pressure Relief Valve
The Conbraco Industries 19-KHGA-125 is a heavy-duty Section I steam pressure relief valve engineered for high-capacity boiler and steam system applications. Preset at 125 PSI, this valve delivers reliable overpressure protection with a robust 5,609 pounds per hour (PPH) steam capacity, making it well-suited for commercial and industrial steam systems where dependable safety performance is non-negotiable.
Featuring a 1-1/2″ male NPT inlet and a 2″ female NPT outlet, the 19-KHGA-125 installs easily into standard steam piping configurations. The brass trim construction ensures corrosion resistance and long service life, while the Teflon seat provides a tight, leak-free seal under demanding operating conditions.
Key Features
- Section I ASME-rated steam pressure relief valve for power boiler applications
- Factory set at 125 PSI for consistent, reliable overpressure protection
- High-capacity relief: 5,609 pounds per hour (PPH) steam discharge
- 1-1/2″ male NPT inlet connection for straightforward installation
- 2″ female NPT outlet connection for standard steam piping compatibility
- Brass trim construction for corrosion resistance and durability
- Teflon seat for a tight, leak-resistant seal and extended service life
Specifications
- Brand: Conbraco Industries
- Model / SKU: 19-KHGA-125
- Valve Type: Section I Steam Pressure Relief Valve
- Set Pressure: 125 PSI
- Capacity: 5,609 Pounds Per Hour (PPH)
- Inlet Connection: 1-1/2″ Male NPT
- Outlet Connection: 2″ Female NPT
- Trim Material: Brass
- Seat Material: Teflon
Application
Designed for use on power boilers and high-pressure steam systems governed by ASME Section I standards, the Conbraco 19-KHGA-125 provides the safety relief performance required in commercial and industrial environments. Its high PPH capacity and durable materials make it an ideal choice for facilities that demand dependable, code-compliant steam system protection.
