Description

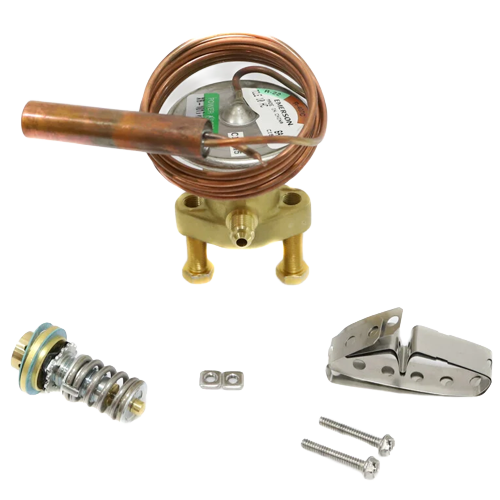

The Copeland 054404 TCLE 10 HC is a heavy-duty, externally equalized Thermal Expansion Valve (TXV) engineered for 10-ton refrigeration and air conditioning systems operating on R22 refrigerant. Designed for medium-temperature applications, this valve delivers precise refrigerant metering and consistent superheat control, making it a reliable choice for commercial HVAC and refrigeration installations.
Key Features
- 10-Ton capacity for large commercial refrigeration and HVAC systems
- Compatible with R22 refrigerant, medium-temperature charge
- Externally equalized design for accurate superheat control across longer evaporator circuits
- SAE external connection with 5-foot (FT) capillary tube length for flexible installation
- VLF (Valve Less Flange) configuration for streamlined mounting and reduced leak points
- Copeland quality construction for long-term durability and performance
Specifications
- SKU: 054404
- Model: TCLE 10 HC
- Capacity: 10 Tons
- Refrigerant: R22
- Temperature Range: Medium Temperature
- Capillary Tube Length: 5 Feet (SAE External)
- Equalization Type: External
- Valve Type: TXV (Thermal Expansion Valve)
- Flange Configuration: VLF (Valve Less Flange)
Applications
- Commercial air conditioning systems
- Medium-temperature refrigeration equipment
- Split systems and packaged units using R22 refrigerant
- Evaporator circuits requiring external equalization for optimal superheat management
