Description
Overview

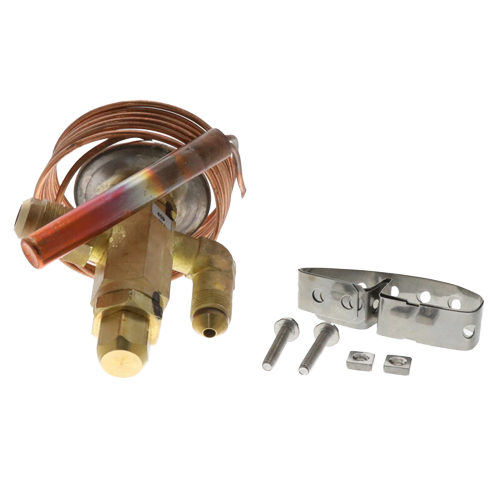

The Copeland 054927 is a medium-temperature charge Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in 1-ton cooling applications. Designed to work with R22 and R407C refrigerants, this straight-body valve delivers consistent superheat control to protect compressors and maximize system efficiency. The model number HF 1 HC 5FT 3/8 X 1/2 SAE S/T identifies this as a field-proven component trusted by HVAC/R technicians and contractors.
Key Features
- Capacity: 1 Ton — ideal for residential and light commercial refrigeration and A/C systems
- Compatible refrigerants: R22 and R407C
- Temperature charge: Medium temperature application
- Body style: Straight body for straightforward inline installation
- Capillary tube length: 5 feet for flexible bulb placement and routing
- Inlet connection: 3/8″ SAE flare
- Outlet connection: 1/2″ SAE flare
- Connection type: Flare fittings — no brazing required for installation
Application
- Residential and light commercial air conditioning systems
- Medium-temperature refrigeration equipment
- Systems operating on R22 or R407C refrigerant circuits
- Replacement or retrofit TXV installations requiring SAE flare connections
Specifications
- SKU: 054927
- Model: HF 1 HC 5FT 3/8 X 1/2 SAE S/T
- Brand: Copeland
- Capacity: 1 Ton
- Refrigerant: R22 / R407C
- Charge Type: Medium Temperature
- Body Style: Straight
- Capillary Tube Length: 5 Feet
- Inlet Size: 3/8″ SAE Flare
- Outlet Size: 1/2″ SAE Flare
